Viollet-le-Duc, Eugène-Emmanuel, 1814-1879, Towle, George M. (George Makepeace), 1841-1893 · Boston : J.R. Osgood and Company · leaf 88

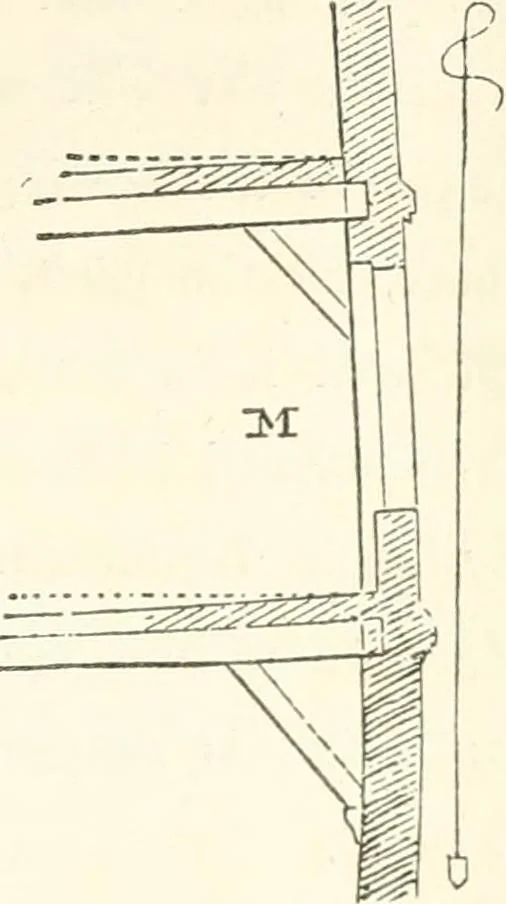

...._ K I … Fig. 12. make this clear. Let A be a section of the wall, or, if youprefer, its thickness. If the beam bends at the line CD,it produces a pressure at D, which is betrayed by a push-ing out at F, and the rounding of the wall indicated bythe dotted curves. Suppose that, in place of the truss E,we…
