Structural mechanics : comprising the strength and resistance of materials and elements of structural design, with examples and problems (1907)
Greene, Charles E. (Charles Ezra), 1842-1903, Greene, Albert Emerson · New York : John Wiley & Sons ; London : Chapman & Hall · leaf 62

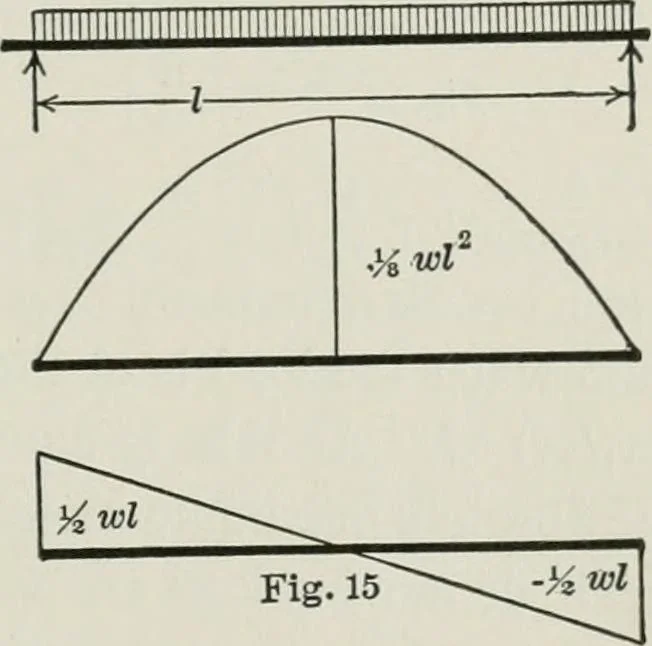

Fig.13 Fig. 14 shows a beam on two supports carrying a load W,The bending moment is evidently a maximum under the weight, and is equal to IF -,—, a quantity easily remembered as the weight into the product of the two segments divided by the span.When the load is at mid-span M = \Wl. In Fig. 15 a…
Mechanics · Structural analysis (Engineering)
