Structural mechanics; comprising the strength and resistance of materials and elements of structural design (1905)
Greene, Charles E. (Charles Ezra), 1842-1903, Greene, Albert Emerson. [from old catalog] · New York, J. Wiley & sons; [etc., etc.] · leaf 143

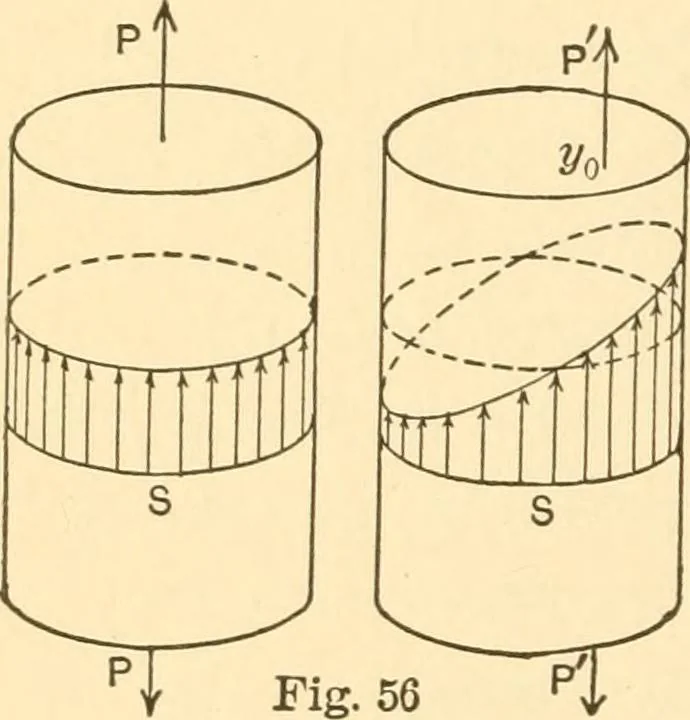

fore vary uniformly in the direction of the deviation of the action line of P from the centre, (Fig. 56), and be constant on lines at right angles to that deviation. The force, P, acting at a distance, y0, from the axis of the tie is equivalent to the same force, P, at the centre and a moment, Pyo-… … }t-s- The latter is zero at the centre of gravity of the section and amaximum at the edge toward which the load deviates, where it is PIECES UNDER TENSION. 129 My 1 Pyoyi I Sr2 Note that /* is the mean stress, which is always the existing stressat the centre of gravity of the cross-section.…
