The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases (1837)
Nicholson, Peter, 1765-1844 · New York : Office of the Railroad Journal · leaf 18

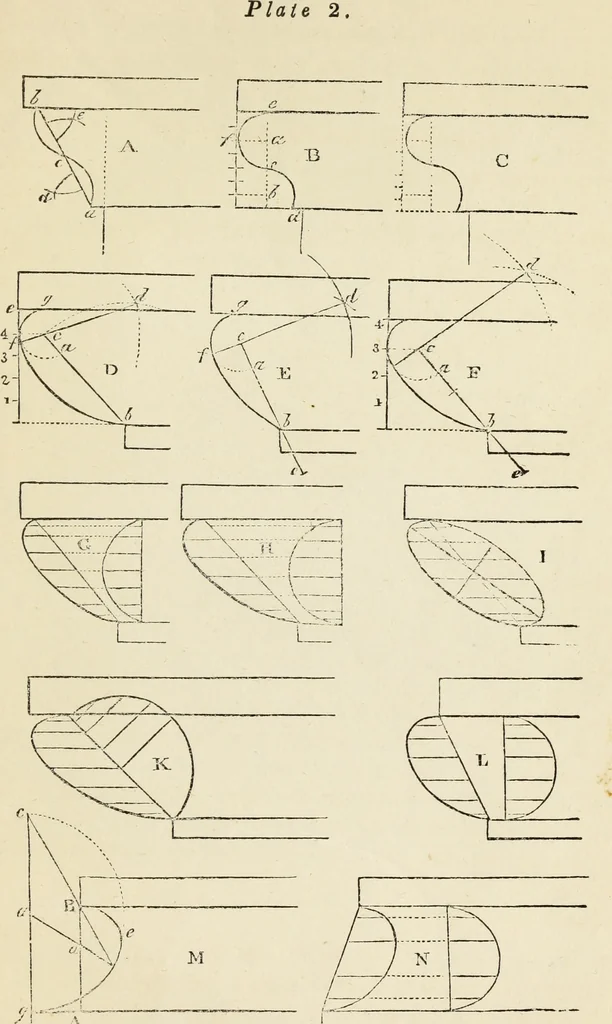

, draw the line g a c, parallel to A B : make g a,equal to twice g A, on a: describe the semicircle gee, cutting the line g a c, at <*,through c, and the end of the fillet, at B, draw the line cBe, cutting the semicircle at e:draw the line ade, cutting A B, in d\ lastly on d, describe the arc e… … MODERN MOULDINGS.Plate 3.
