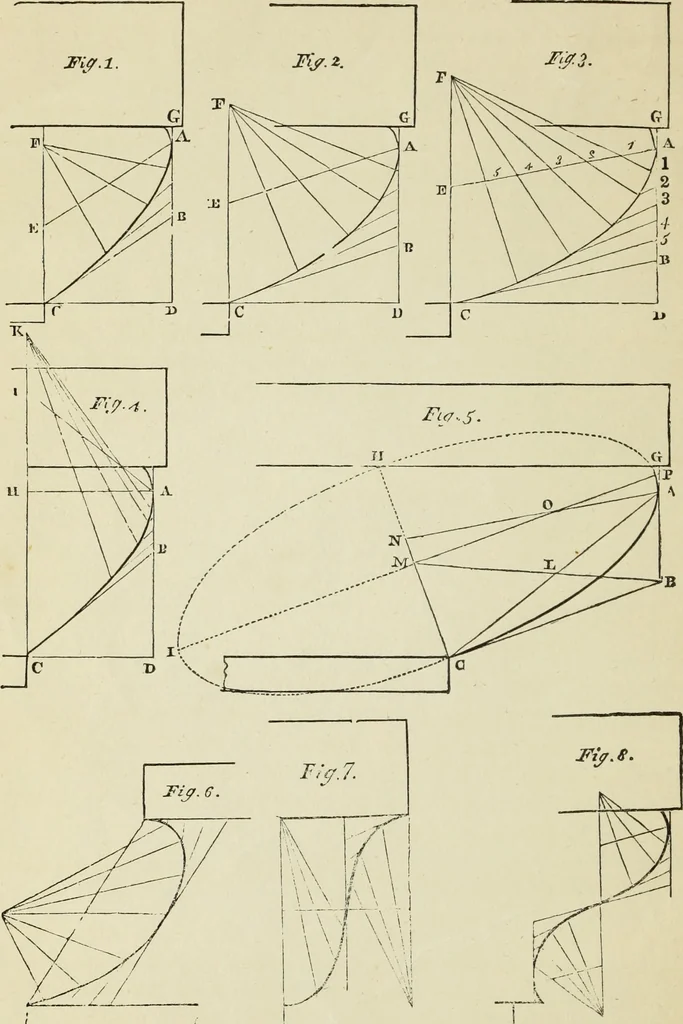

MODERN MOULDINGS.Plate 3. … 7 PLATE III. MODERN MOULDINGS. To describe a Grecian Ovolo or Echinus. Have two tangents to the curve, and the points of contact given, one of the pointsof contact being the greatest projection, and the other the lower extremty of the curve. Fig. 1, 2, 3, let A B, B C, be the two tangents, A the…
