The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases (1837)

Nicholson, Peter, 1765-1844 · New York : Office of the Railroad Journal · leaf 24

An illustration from The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases, 1837, leaf 24

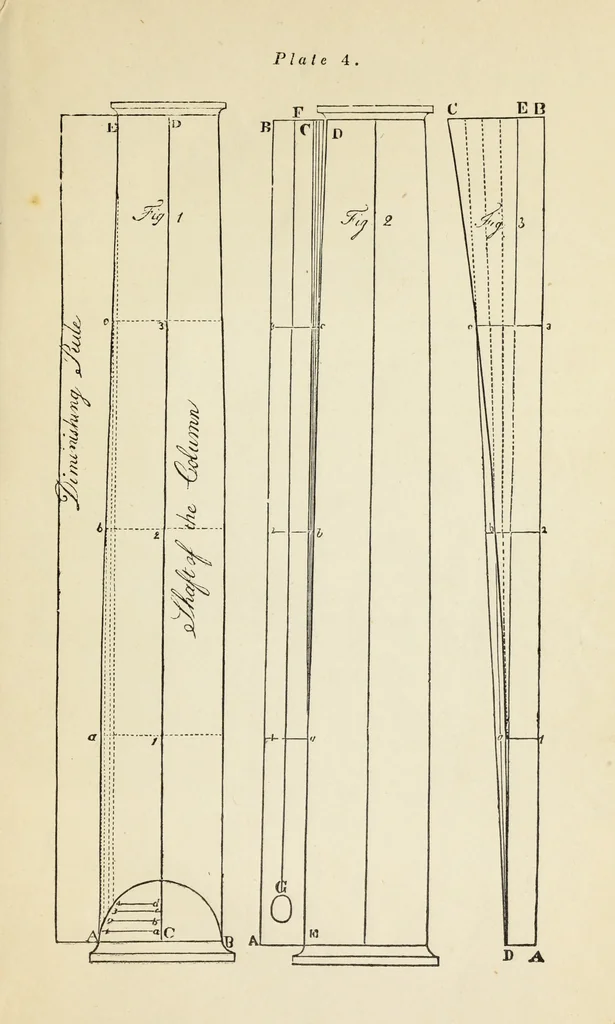

raw lines from each division on C D,towards E, at the bottom ; cutting lines drawn parallel to the base, through 1, 2, 3,will give points, by which you may draw as before, a curve of a very regular and plea-sing form, which may be drawn on the edge of the rule, or on the column itself, as ismost… … TO DRAW THE FLUTES OF COLUMNS.Plate 5.
