The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases (1837)

Nicholson, Peter, 1765-1844 · New York : Office of the Railroad Journal · leaf 33

An illustration from The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases, 1837, leaf 33

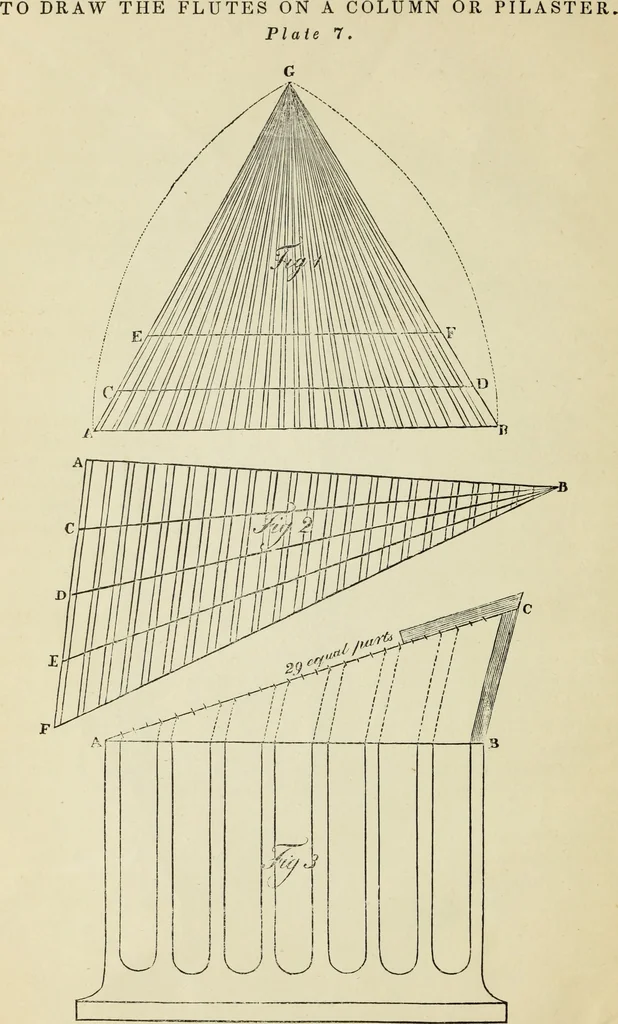

11 PLATE VII. TO DRAW THE FLUTES AND FILLETS ON A COLUMN OR PILASTER. Fig. i. A B, is any line divided into flutes and fillets, greater than the circumferenceof the column at the base; on A B, describe the equilateral triangle A B G, draw allthe points in A B to G, then if G C and G D, are equal to…
