The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases (1837)

Nicholson, Peter, 1765-1844 · New York : Office of the Railroad Journal · leaf 71

An illustration from The student's instructor in drawing and working : the five orders of architecture : fully explaining the best methods for striking regular and quirked mouldings, for diminishing and glueing of columns and capitals, for finding the true diameter of an order to any given height, for striking the ionic volute, circular or elliptical, with finished examples, on a large scale, of the orders, their planceers, etc. and some designs for door-cases, 1837, leaf 71

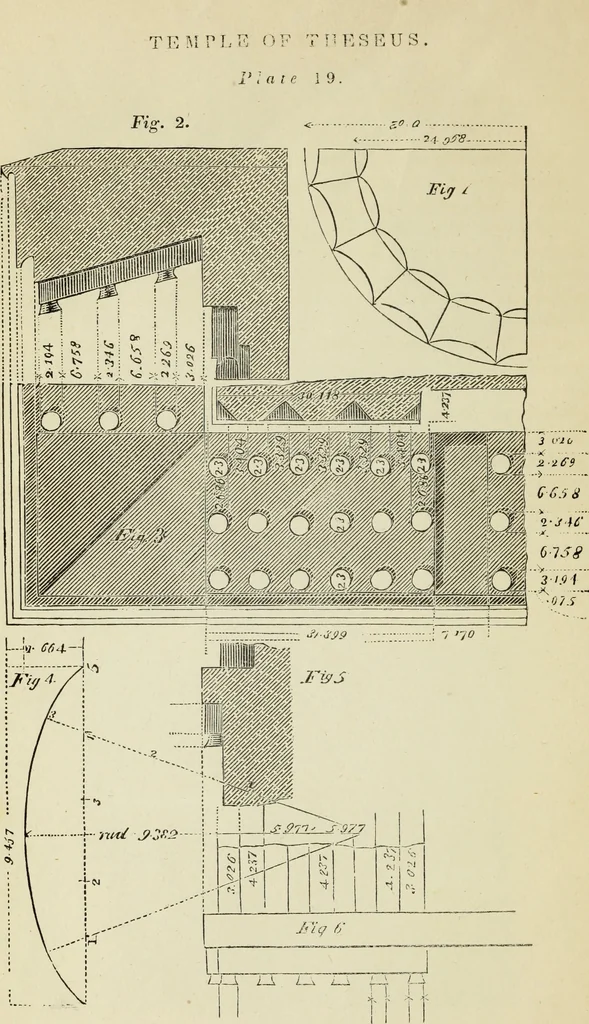

25 PLATE XIX. PARTS AT LARGE AND IN DETAIL OP THE PRECEDING EXAMPLE. Fig. 1. Quarter plan of the column, at the superior and inferior diameter of the shaft. Fig. 2. Profile of the cornice to a large scale. Fig. 3. Soffit of the corona, with a section of the angular triglyph. Fig. 4. One of the…
