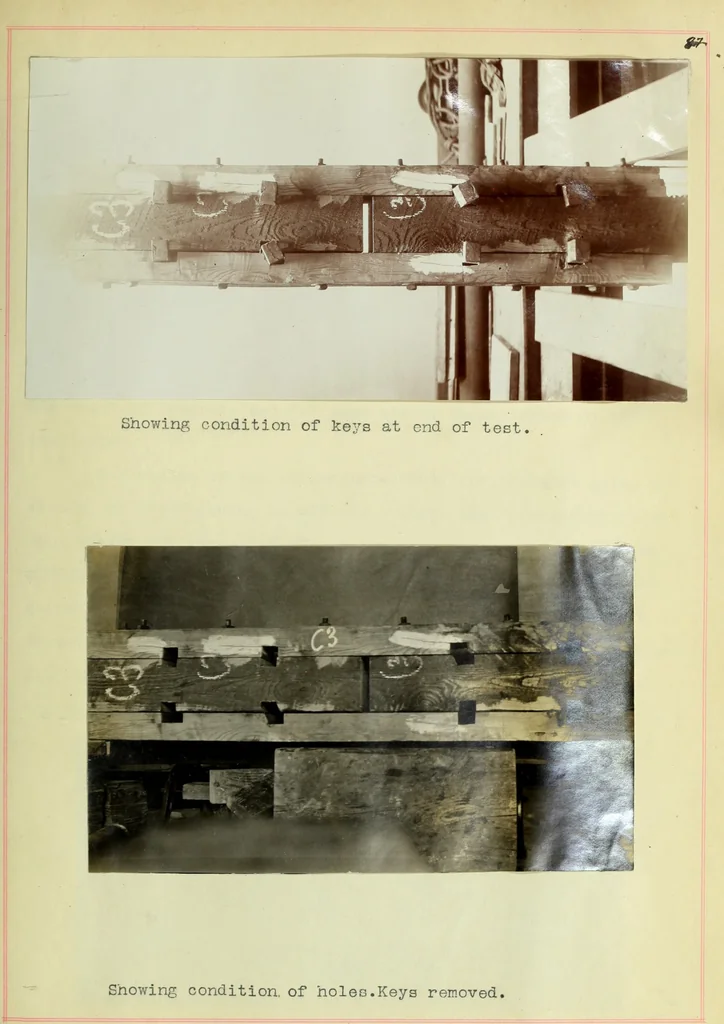

rth, and the upper south sidesshow the worse condition; the holes were badly distorted and outof line, while the remaining four were in fair condition. This piece also bent; but toward the south instead of thenorth , as in Joint CP.; this bending was noted at about 50000lbs.The rotating of the keys… … LIBRARYOF THE UNIVERSITy of ILLINOIS, zg Type D. Joint D. Contains a small sound knot at the second bolt fromthe lower end of the splice, in the 6x6, and on the 10 facejonthe other side there was also a knot 1 inch in diameter 14 inchesabove the joint, and likewise another at the edge of the 6x6…
