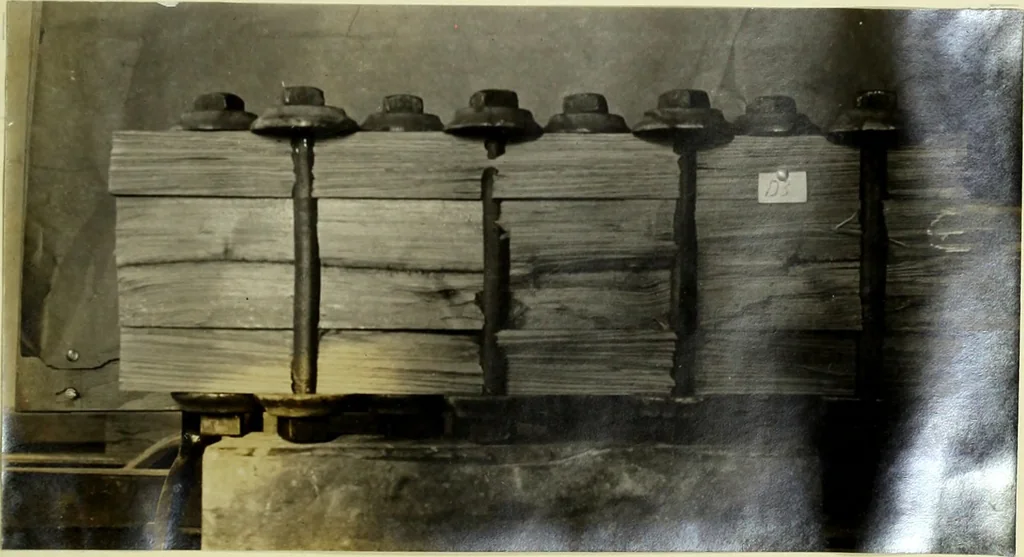

D 3, incorrectly marked E g, showing condition of failure. … The above picture shows the condition of the bolts after the test. As seen the bolts are slightly bent, even more than in the pre-ceding tests; it also shows, that the greatest bending was atthe bolt nearest the joint; and that maximum bending occurredin the center of the 6x6.Type E. Joint E 1.…
