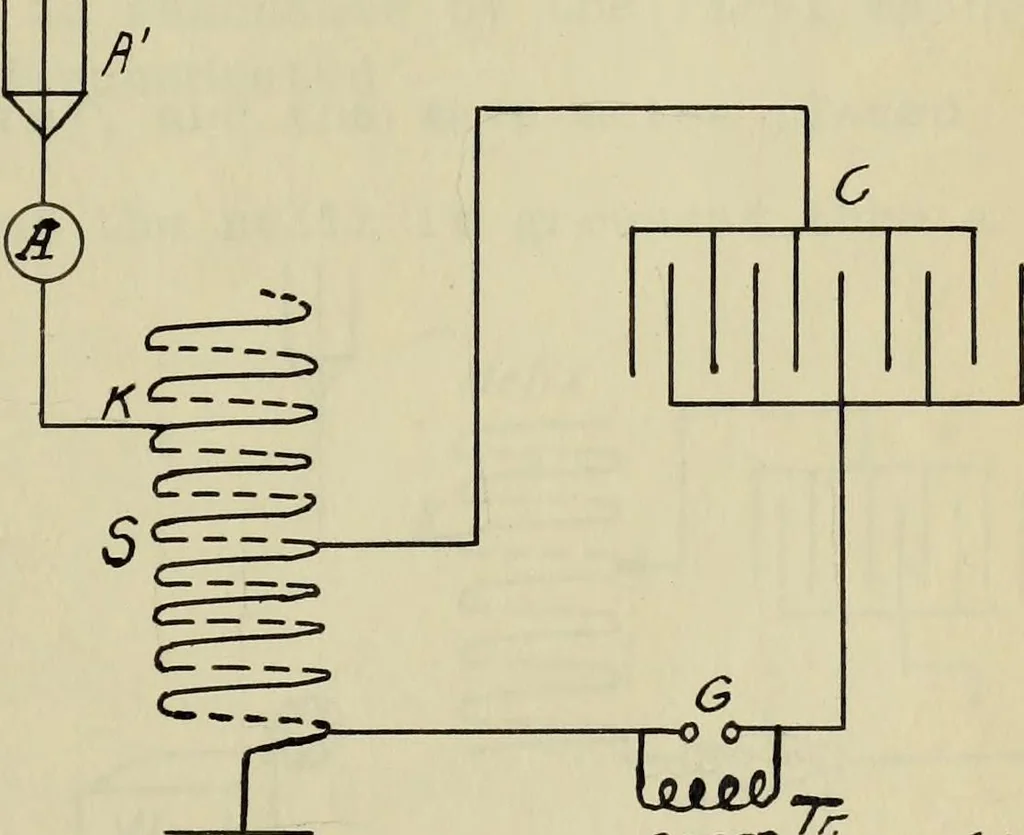

a condenser. The large amount of power in the condenser cir-cuit is attained by large capacity instead of by length of thespark gap. Power = No.of charges per sec, x capacity x (Max.potential) g To adjust a direct coupled sending station to resonance, consider the adjacent figure.The condenser C,… … Fig. 31 Direct Coupledcircuit, consisting of the Transmitting Station. antenns, the coil S of the helix, and the ground. A maximumeffect is produced when these two circuits are properly adjustedto each other. The inductively coupled sending circuit has forits helix two helices, p and 3,…
