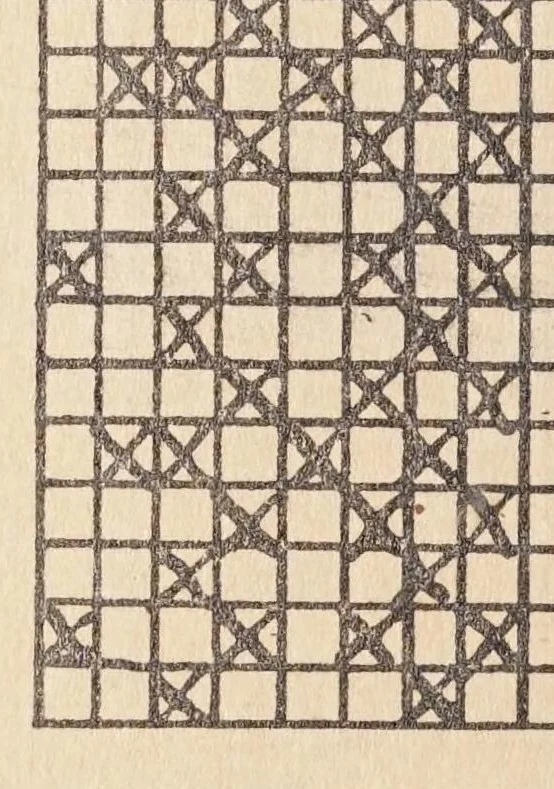

n warp) x 100 (length) + 10% ah 840 x 28 (counts of warp) { = 9.07 Ibs. of warp | 240 (ends ply yarn) x 100 (length) + 10% Ma 840 x 14.25 (counts of warp) = 2.22 lbs. ply yarn h S¢ (width) x 18 (pick) & 100 Ce 840 x 30 (counts of filling) 100 yds. of cloth = 18.71 Ibs. 100 + 13.71 = 17.30 yds. per… … The above figure shows the chain draft that would be — used with the drawing-i in draft shown for sample No. 64, using ‘ wire doups and weaving the cloth face down. The jumper is used on harnesses 9 and 11. No. 16 is used for the check pegs. The Munroe Press Fall River 32
