Merchant, F. W. (Francis Walter), 1855-1937 · Toronto : Copp, Clark · leaf 36

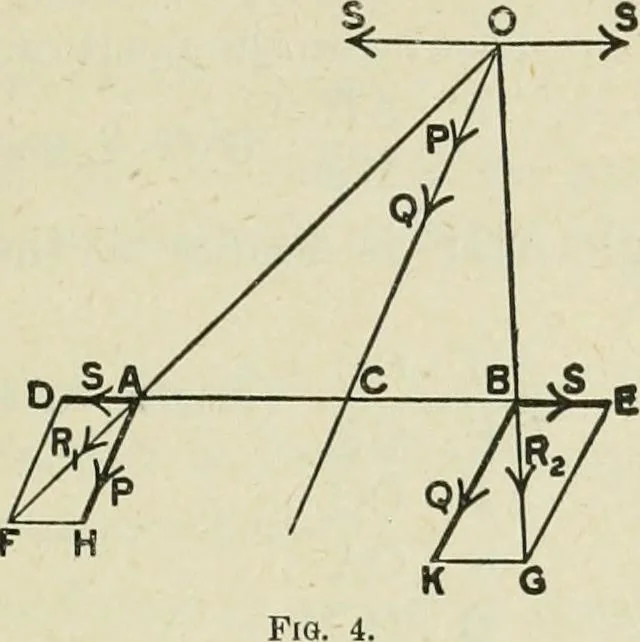

s are like. Let P and Q (Fig. 4) be the forces, and A and B theirpoints of application; let AH and BK represent them indirection and magnitude. At A and B apply two equaland opposite forces S, S, acting in the line AB. Thesewill balance each other and will not disturb the system. 22 PARALLEL… … Now the forces P and S at A may be replaced by theirresultant R]; which is represented by AF, and which maybe supposed to act at O. Similarly the forces Q and S at B may be replaced bytheir resultant R2, which is represented by BG, andwhich also may be supposed to act at O. The force 1^ at O may be…
Mechanics
Internet Archive · Western University Libraries · Public Domain Mark 1.0. Free to use for anything.
