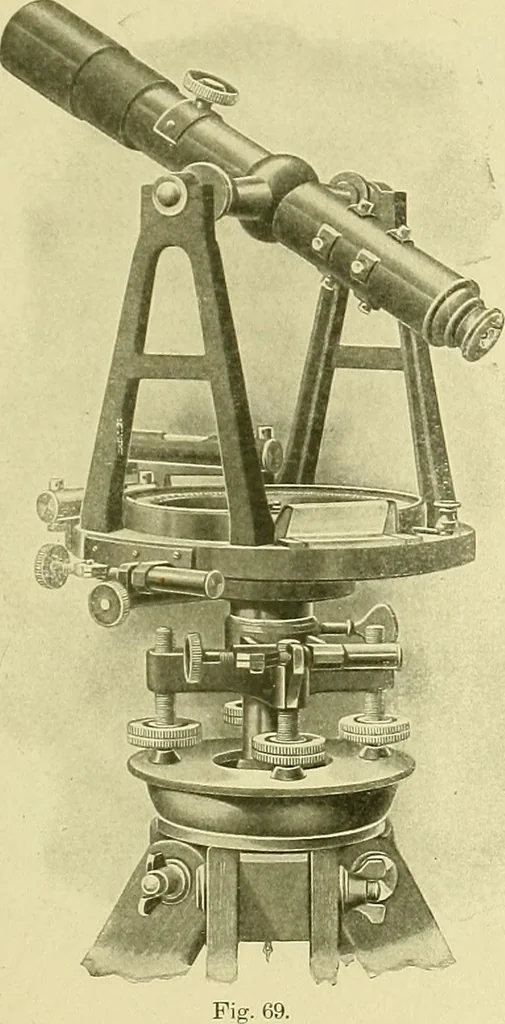

the whole is attachedto the tri^xxl by screwing to a casting firmly attached to thelegs. The vertical axis is furnished with a hook, to which maybe attaclied a ]ilund>-liiie for tlie accurate centering of the instrn- PLANE SURVEYINa 90 uieiit. A shifting cent(^r is also provided, by nieausof… … The three-screw leveling base is necessarily larger and differsin detail from the four-screw. The upper plate carrying the screwsis permanently attached to the instrument; and the lower ends of lOf) PLANE 8UBVEYING the screws rest upon the trixjod casting, to which it is attaclicd bya singk center…
