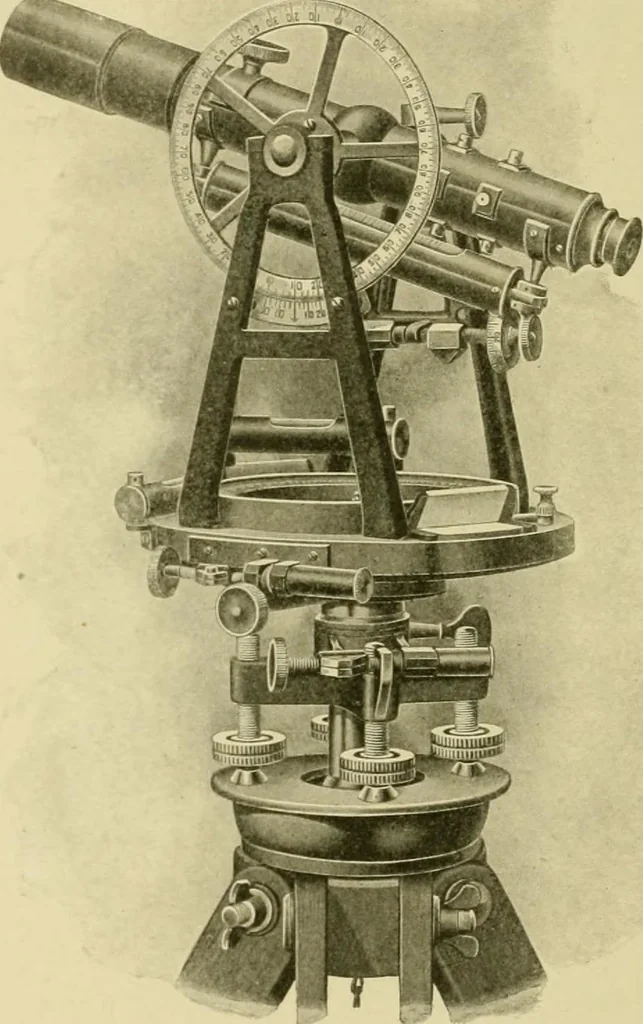

The three-screw leveling base is necessarily larger and differsin detail from the four-screw. The upper plate carrying the screwsis permanently attached to the instrument; and the lower ends of lOf) PLANE 8UBVEYING the screws rest upon the trixjod casting, to which it is attaclicd bya singk center… … Fig. 70. The four-screw base commends itself from the fact that it canquickly be leveled approximately; and, no matter how much thethreads are worn, the instrument can be brought to a solid bearing. PLANE SUEYEYING 101 The three-screw base, however, is more easily manipulated, and alldanger of…
