Surveying ; a manual of practical instruction in the art of plane surveying, including plotting, leveling, triangulation, line running, cross-sectioning, traversing, and other details of field work (1910)
American School of Correspondence, Phillips, Alfred Edward, 1863- [from old catalog] · Chicago, American school of correspondence · leaf 112

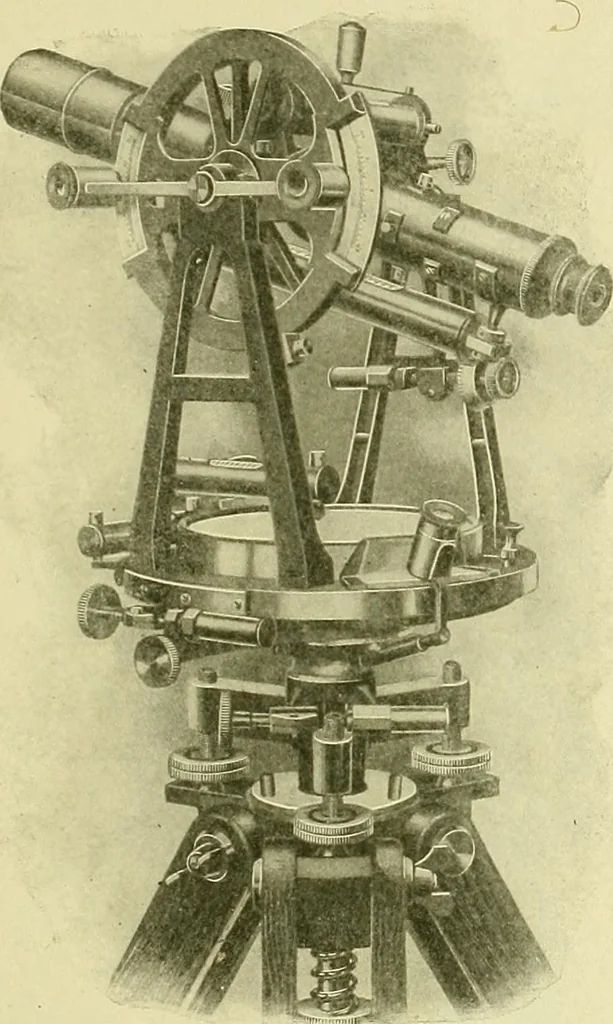

Fig. 70. The four-screw base commends itself from the fact that it canquickly be leveled approximately; and, no matter how much thethreads are worn, the instrument can be brought to a solid bearing. PLANE SUEYEYING 101 The three-screw base, however, is more easily manipulated, and alldanger of… … Fig. 71. smoothly and evenly, and the pitch should be adjusted to thesensitiveness of the bubbles. Most transits are fitted with a compass set in the up)ijer plate 102 PLANE SUEVEYINfl
