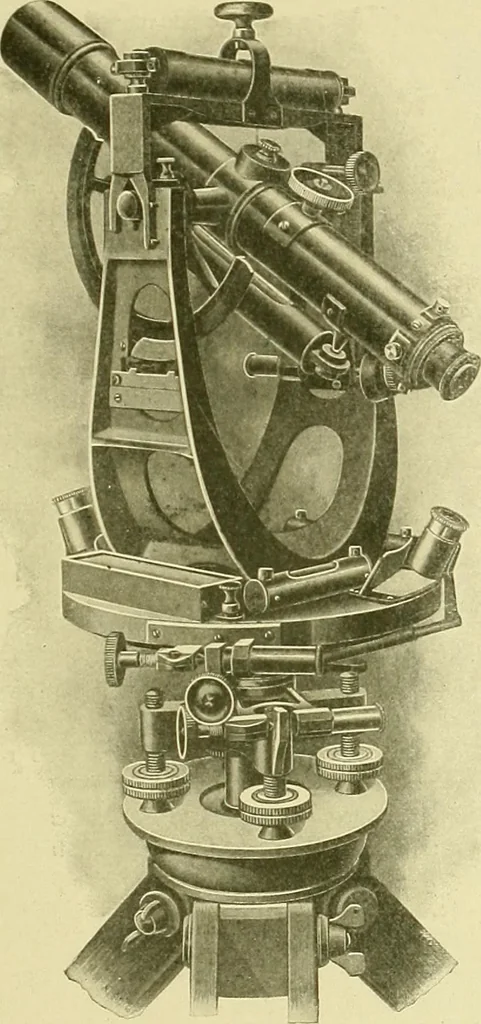

F,g. 72. between the standards: but for city work, triaiigulatioii, etc., thecompass is dispensed witli. PLANE SL^RVEYIXG lo:> For iiRasuring vertical angles, the transit is fitted with avertii-al arc or circle divided usually to one-half degrees, and … Fig. 73.reading to single minutes by the vernier. A level tube may also beattached to the under side of the telescope; and when this is 104 PLANE SUEVETmG Ijrovided the transit mfiy hn nsed as a leveling instniment.A striding level resting iiix)n the standards uuij also be ijrovided,by means of…
