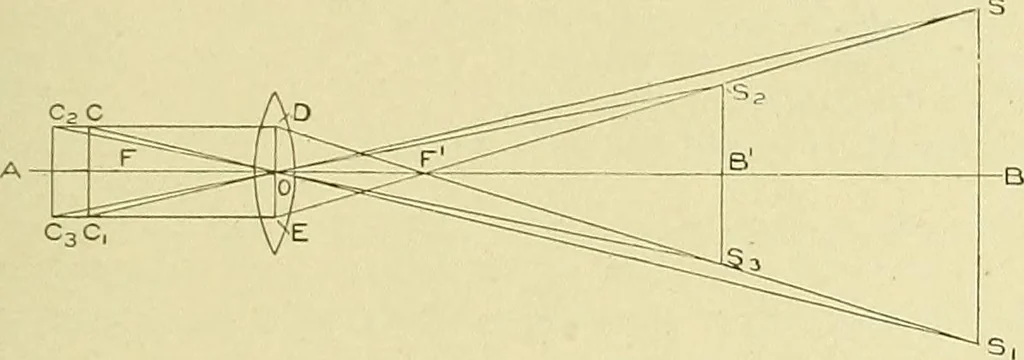

ise of the stadia will now be deduced. Let O in Fig. 86 be the optical center of the object-glass oftlie telescope. This point may be assumed at the center of thehMs, and the error involved in such assumption is inappreciable■lad may be neglected. Lit SSi be a ijortion of the stadia rod covered by… … Pit;. 87. Call ? tho distance between the stadia hairs, s tlie interceptupon the rod, _/ the distance from O to tlie wires, and (/ thedistance of the rod from O. Tlie triangles COCi and SOtii are similar, and therefore w< havethe xiroportiou i: s :: / : afs therefore c? (») But/ varies with d.…
