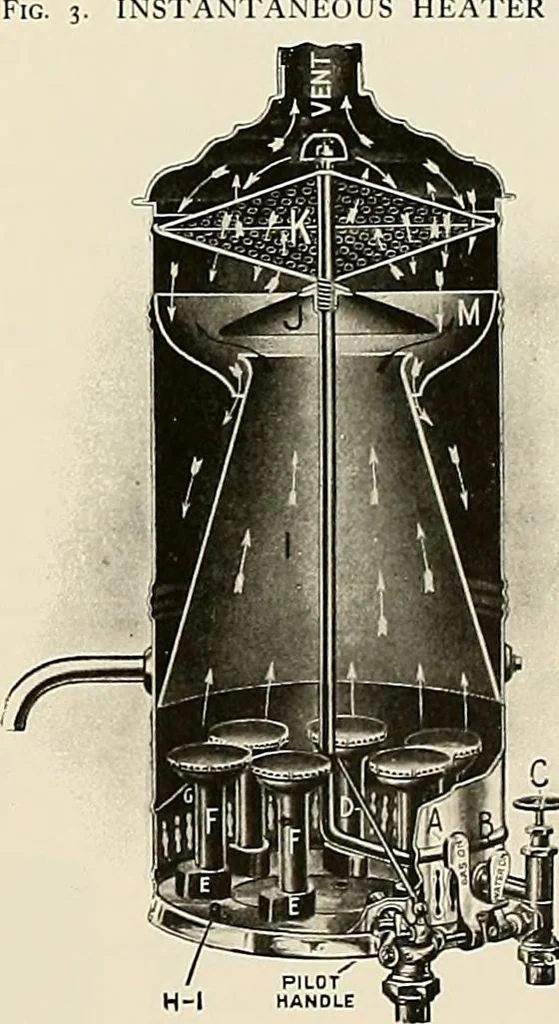

INSTANTANEOUS HEATER No. b No.Heater Gas SuppljPrice fromMeter Heats gals,per min. 50O in Tem-perature Height 291/2 in.28y2in. Dia-meter Ship-pingWeight 68 $25.0020.00 % inch% inch 32y2 12 in.10% in. 60 lbs.48 lbs. … ^ These prices include Safety Valves and Unions, one BentOutlet Spout. \h-2 Fig. 4. INSTANTANEOUS HEATER No. 6Showing Construction Explanatory: C, Water Regulator; D, Pilot Pipe; E,Air Shields, F and F, Burner Pipes; G, Drip Ring; Hiand H2, Bolts to hold Water Parts to Shelf; I, ConicalHeating…
