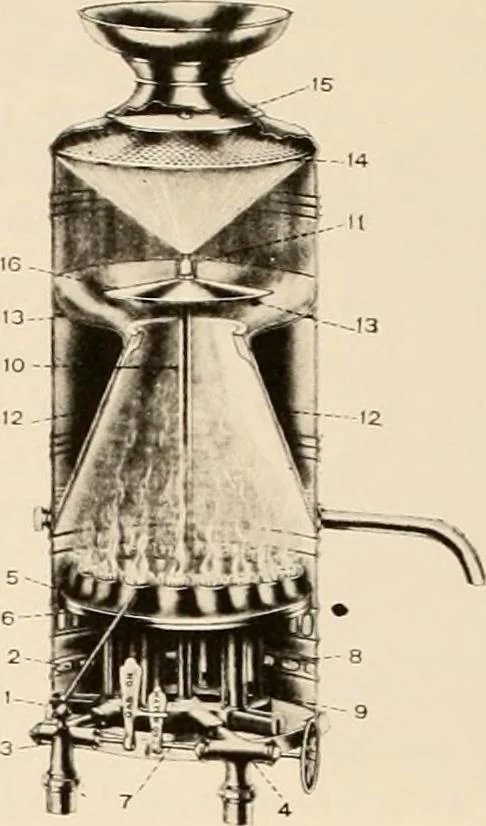

ect combustion. It has no screens or sieves which clog upand cau*e endless trouble sooner or later. It requires no \ent Pipe because we u^ean entire!) new principle. The water is sprayed upwarJ (Fig. 9) through spray 11, thus creating a forced draftand up-lifting all air pressure from the burner,… … Pilot Light ValvePilot Light Tube.Gas Valve.Water Valve.Burner Plate (upper).Burner Plate (lower).Gas Chamber.Retort Tubes.Gas Nipples.Stand Pipe.Sprayer.Center Cone.Truncated Cone.Perforated Plate.Solid Baffle Plate.Water Shed. Fig. 9. RAPID BATH HEATERSectional \iew Showing Operation
