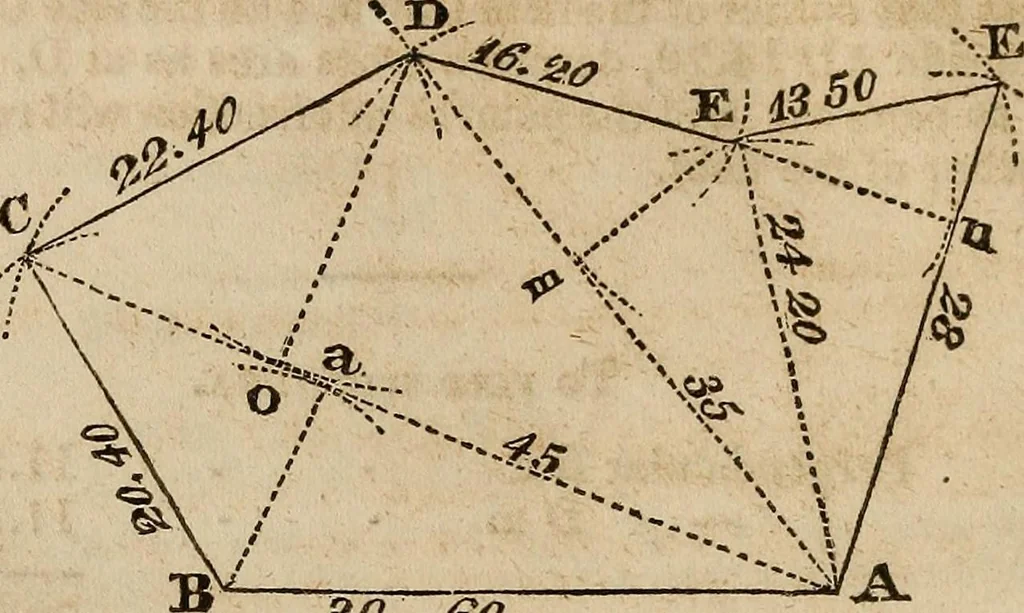

rds and forwards, may just touchthe diagonal at A, and neither go the least above or below it; thatdistance in the dividers being measured on the scale will give thelength of the perpendicular. CASE III. To SURVEY A FIELD WHICH HAS MORE THAN FOUR SIDES, BYTHE CHAIN ONLY. Measure the several sides,… … 30 fiO Ch.L. AB 30.60 BC 20.40 CD 22.40 AC DE 16.20 AC EF 13.50 AE FA 28. Diagonals, Ch.L.45.35.24.20. To PROTRACT THIS FIELD. Draw the side AB, making it the given length 30.60 ; withthe diagonal AC 45 and the side BC 20.40, describe crossarcs as at C, from the points A and B as centres, and…
