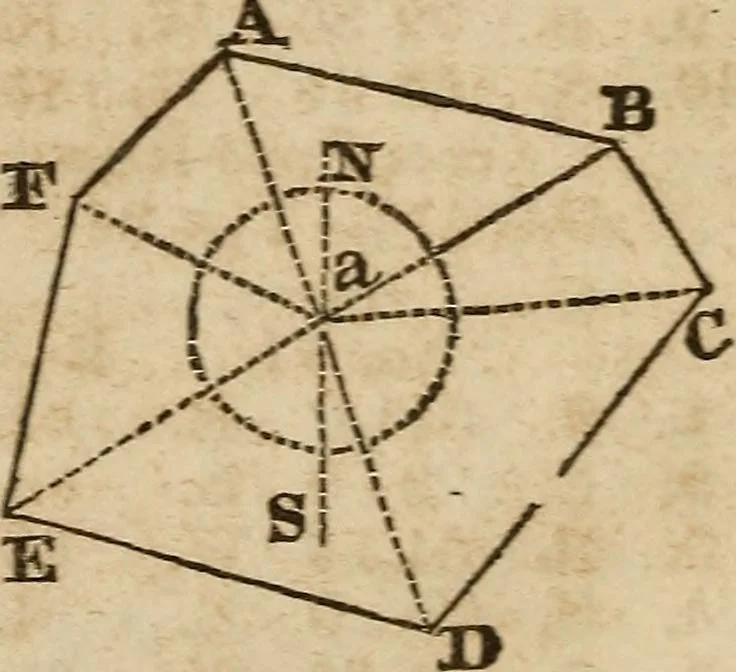

2 30 W. 41. 14. s. 84 20 w. 9.5 25. X. 14 45 W. 62.32 15. N. 22 15 w. 24. 26. N. 16 0 W. 14.8 16. North 9,8 27. N. 1 45 W. 14.8 17. N. 29 15 w. 30.6 28. N. 82 30 W. 99. 18. N. 44 25 w. 21.8 19. N. 61 30 w. 23.1 A cres Rood Rods 20. N. 41 0 w. 10.8 Area 135 — 1 — 15 CASE v. To SUEVEY A FIELD FROM… … Ch. L. From station to A. N. 20 °W. 8.70 B. N. 60 E. 10. C. X. 87 E. 11.40 D. s. 15 E. 10.50 E. s. 60 W. 12. F. X. Qb W. 8.78 TO PROTRACT THIS FIELD. Draw a meridian line as X S. From some point in thatline as a centre, lay off the bearing and distance to the sev-eral angles, and draw lines from…
