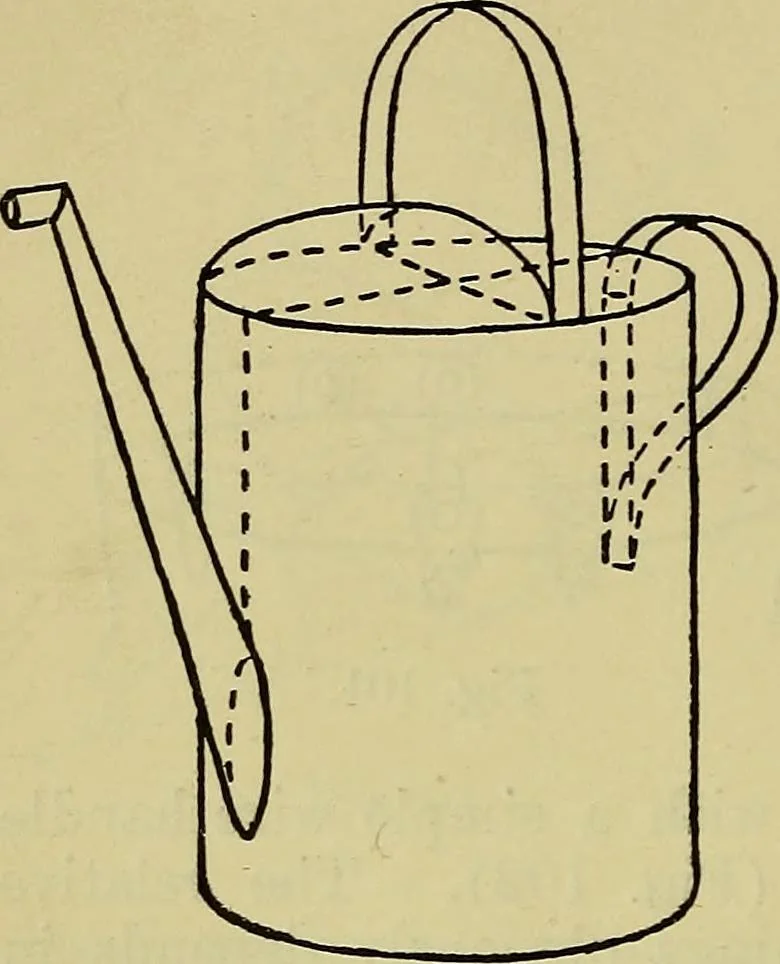

Fig. 102 Fig. 103. every case on a diameter of the circular opening of thecan (whether the handle is vertical or inclined), as 1-2,3-4, 5-6. The same principle applies to the placing of 92 CURVES IN DIFFICULT POSITIONS. … the handle and spout of the can (Fig. 103), and a moreextended application is shown in the alignment of thelower handle and the spout of the watering can (Fig. 104). The horizontal portion of thespout is parallel to the diame-ter marking the position ofthe spout and handle at-tached to the body of…
