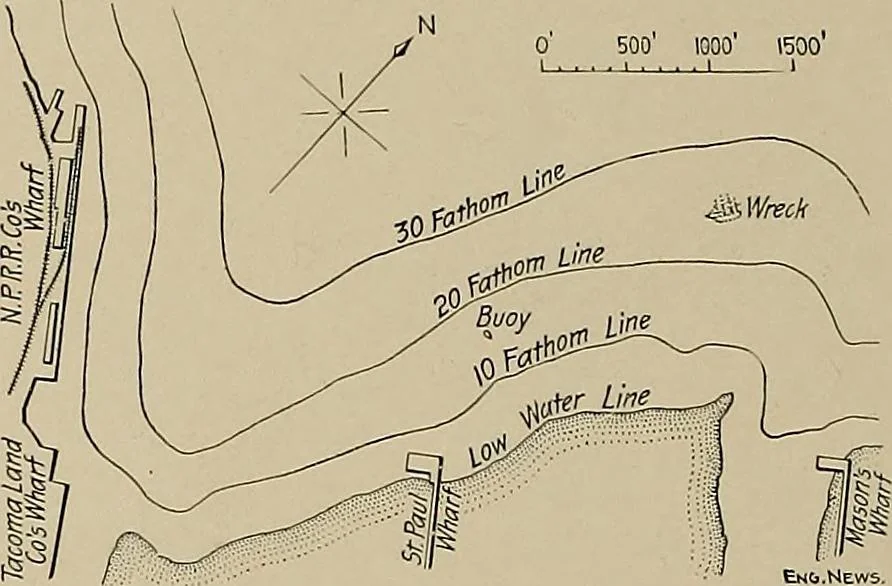

Contour lines on a map, (Figs. 69 and 77) must be indicated byvery light lines. Every fifth or tenth contour should be accen-tuated by drawingsame heavier. Forthis purpose a wellworn Gillotts No.303 pen may berecommended; thiswill yield a fairlyuniform line of me-dium strength, re-quiring no… … 75. Bridge The convention for conditions, as for instance asmall plan of a drawbridgewith center pier, etc., may besubstituted for the type shownin our illustration. The strokesindicating slope in Cut andFill, or Levee in thesame figure, should be drawnin a wabbling or vibrantmanner, and, beginning…
