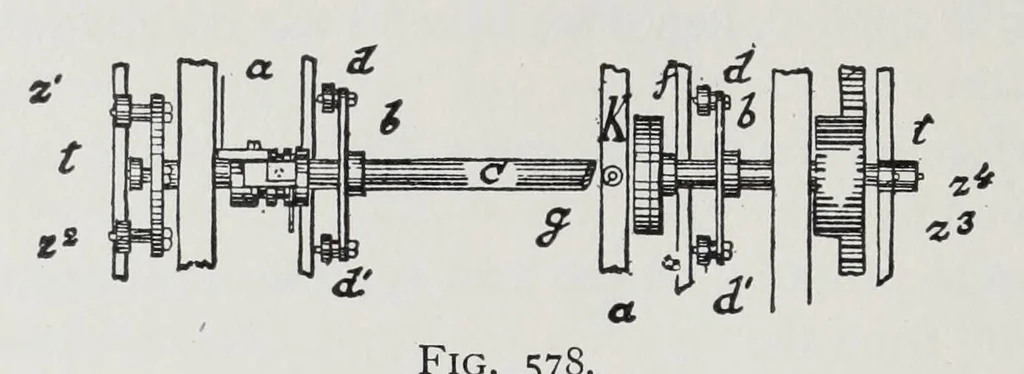

n Fig. 577, which illustrates a view of part of the loom, partly broken out, looking down upon the same. As the cam-shaft revolves the roller projections z3 at the right-hand end of said shaft, and the similar projections, z' z2, at the other end of the cam-shaft, alternately depress the treadles /… … Fig. 578. each other that they will act alternately, first operating the picker-stick at one side of the loom and then the picker-stick at the other side of the loom, and so on. The fly-shuttle is thereby caused to pass across the loom four times during one revolution of the shaft C. This is the…
