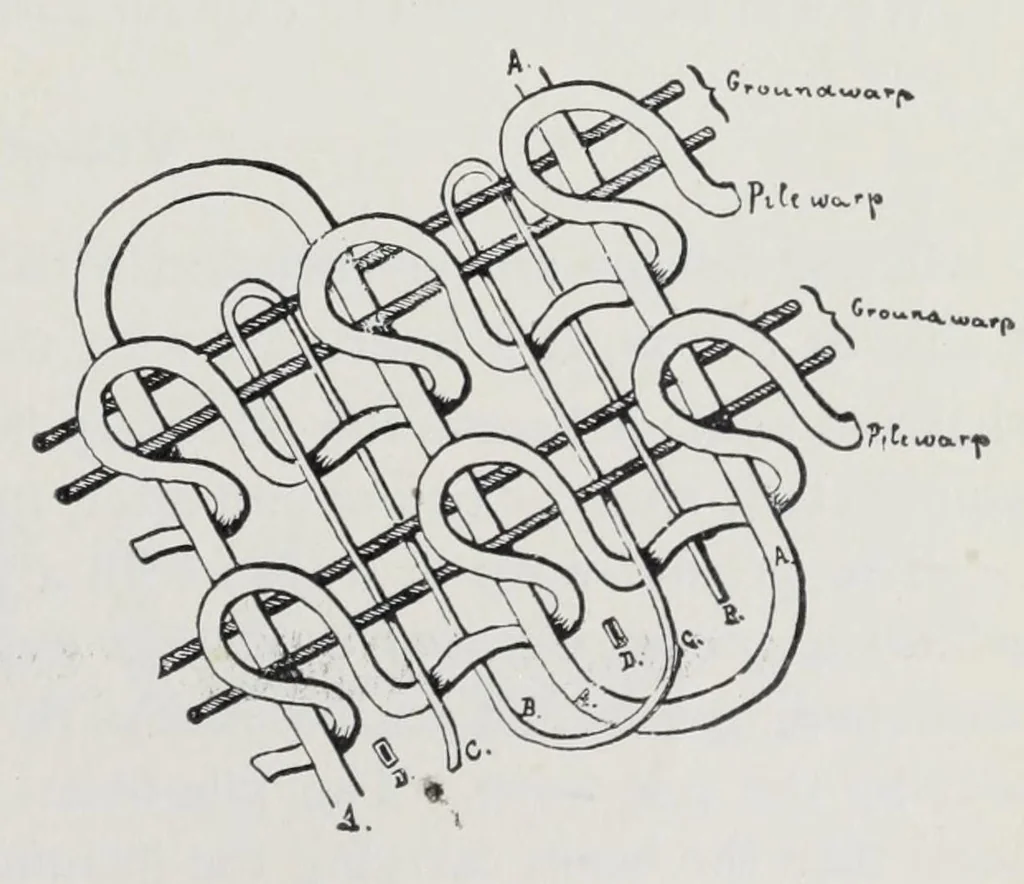

787 we illustrate a weave for a pile fabric. Repeat: 3 warp-threads, 4 picks. Ar- rangement of warp: 2 threads ground (2, 3, 5 and 6), 1 thread pile (1 and 4) = 3 threads in repeat. Filling: I ground pick heavy (A), 2 ground picks finer (B and C)> I pick for inserting wire (D)y ■= 4 picks in… … Fig. Fig. 789. 790. Fig. 789 illustrates the method of operation on the loom. Every letter or number used in this diagram corresponds with those used in Figs. 787 and 788. and thus will readily explain itself.
