Technology of textile design : a practical treatise on the construction and application of weaves for all textile fabrics and the analysis of cloth : containing also an appendix describing all the latest methods and improvements in designing and manufacturing : for the use of students, operatives, overseers, designers, mill managers, commission merchants and manufacturers (1905)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia : E.A. Posselt ; London : Sampson Low, Marston, and Co., Ltd. · leaf 252

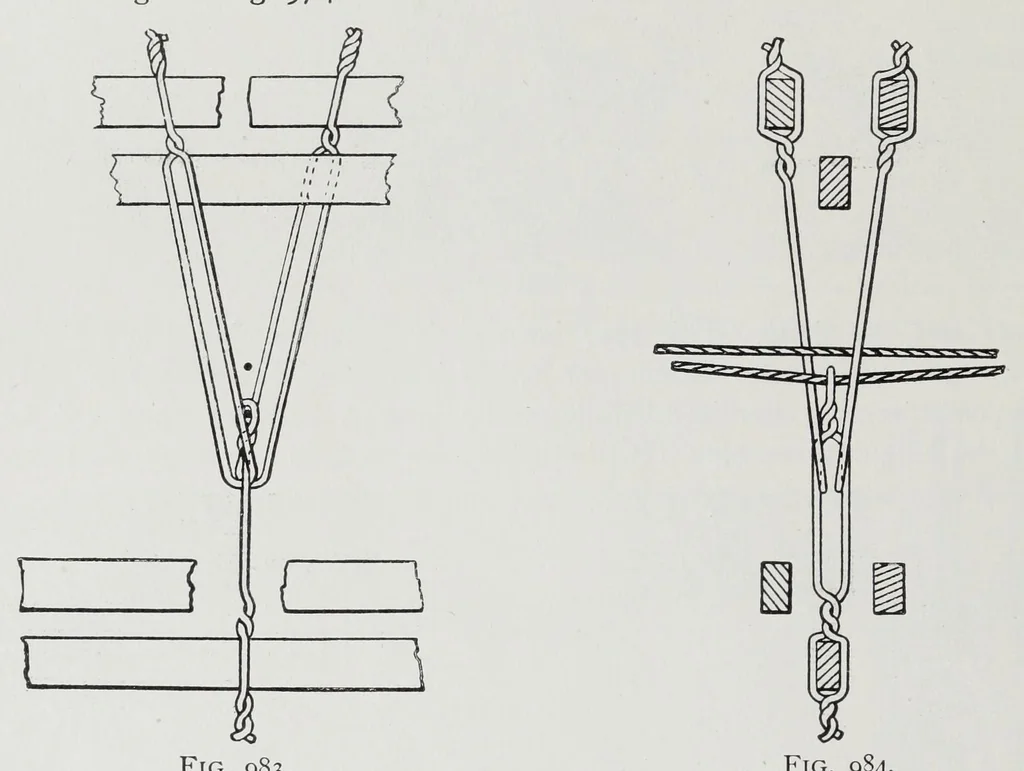

= rear-harness; G = ground-harness; d— heddle for ground-warp; e = heddle for whip thread ; t = passing of the whip-threads below ground-warp; D — doup-harness ; /= doup. Whip-threads are shown in full black, ground-threads are shown outlined. Fig. 975 shows the corresponding crossing as produced… … Fig. 983. Fig. 984. Diagrams Figs. 977 and 978 illustrate the ground plans of using two whip-threads for douping against two ground-threads. The following letters of reference are selected correspond- ingly: R = rear harness; G = ground-harness; D= doup-harness; t— passing of the whip- threads…
Textile design · Textile industry · Weaving
Internet Archive · Getty Research Institute · Public domain (published before 1931). Free to use for anything.
