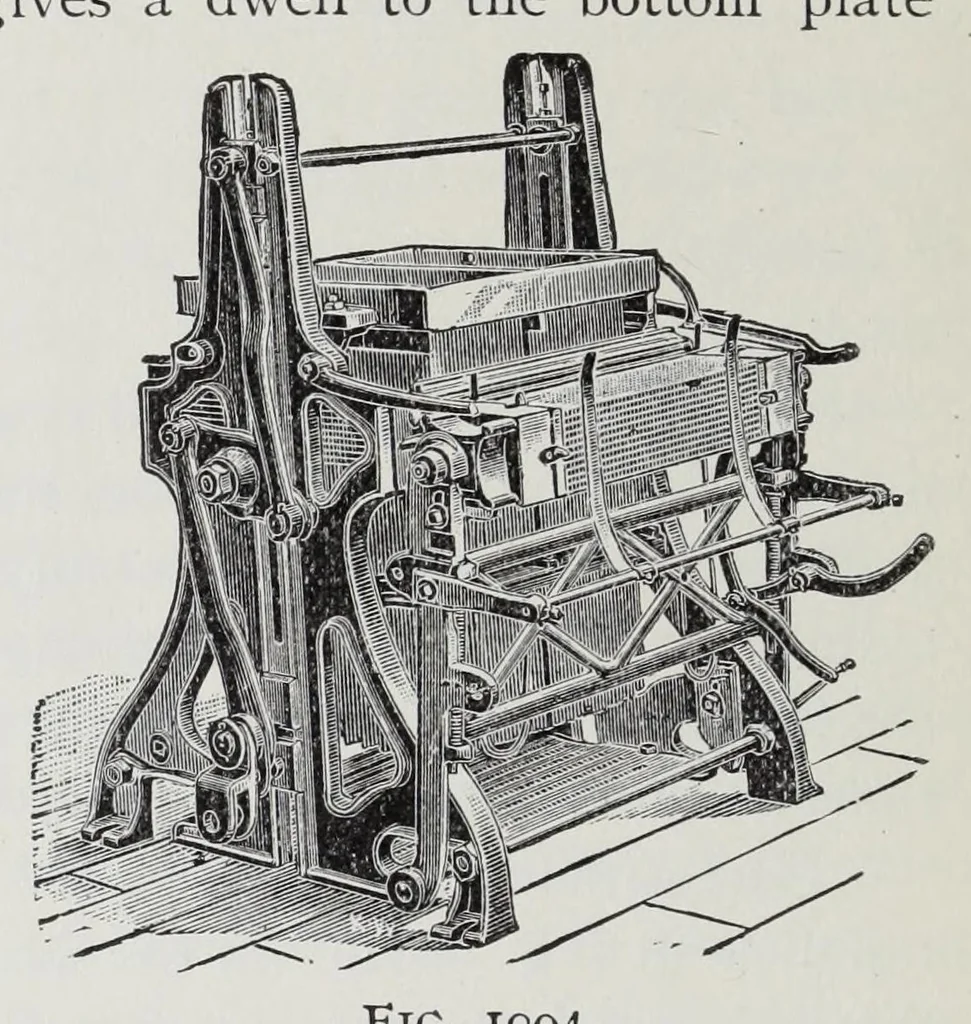

he special feature is the manner in which the griffe and bottom plate are operated, for "rise and drop" shed Jacquard machines have been built before this, but have been so constructed that the bottom plate was coming up at the same time that the hooks coming down with the griffe came in contact… … Fig. 1005. cases. FlG- IO°4- Fig. 1005 illustrates the Double Cylinder Jacquard as built by Messrs. Henry Riehl & Son, Philadelphia. The Jacquard Cards have, for regulating the required raising and non-raising of the hooks, holes punched so as to allow their respective needles to penetrate into the…
