Technology of textile design : being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving : containing also an appendix showing the analysis and giving the calculations necessary for the manufacture of the various textile fabrics (1892)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia : E.A. Posselt ; London : Sampson Low, Marston, Searle & Rivington, Ltd. · leaf 240

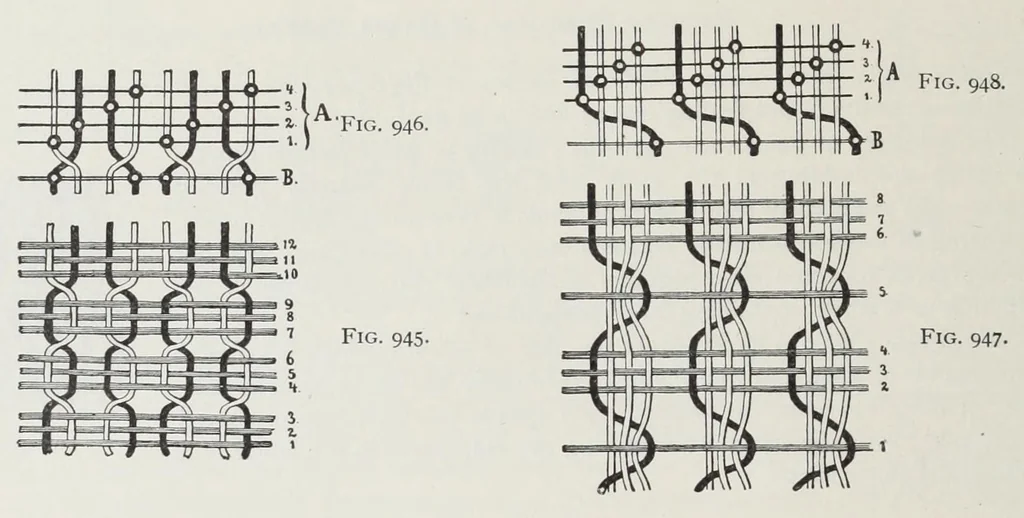

c similar to the one shown in Fig. 943, the only difference being the using, alternately, left and right-hand threading of the doups. Repeat: four warp-threads, "two pairs," and 6 picks. Drawing in of ground harness set and the threading of doups for producing the present fabric is shown in Fig.… … Another plan for producing fancy gauze-effects is found in arranging the whip-thread to cross over two or three ground warp-threads; for example, as shown in the plan of a fancy gauze fabric, Fig. 947. In the same we find the whip-thread, after interlacing in connection with three ground-threads…
Textile design · Textile fabrics · Weaving
