Technology of textile design : being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving : containing also an appendix showing the analysis and giving the calculations necessary for the manufacture of the various textile fabrics (1892)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia : E.A. Posselt ; London : Sampson Low, Marston, Searle & Rivington, Ltd. · leaf 34

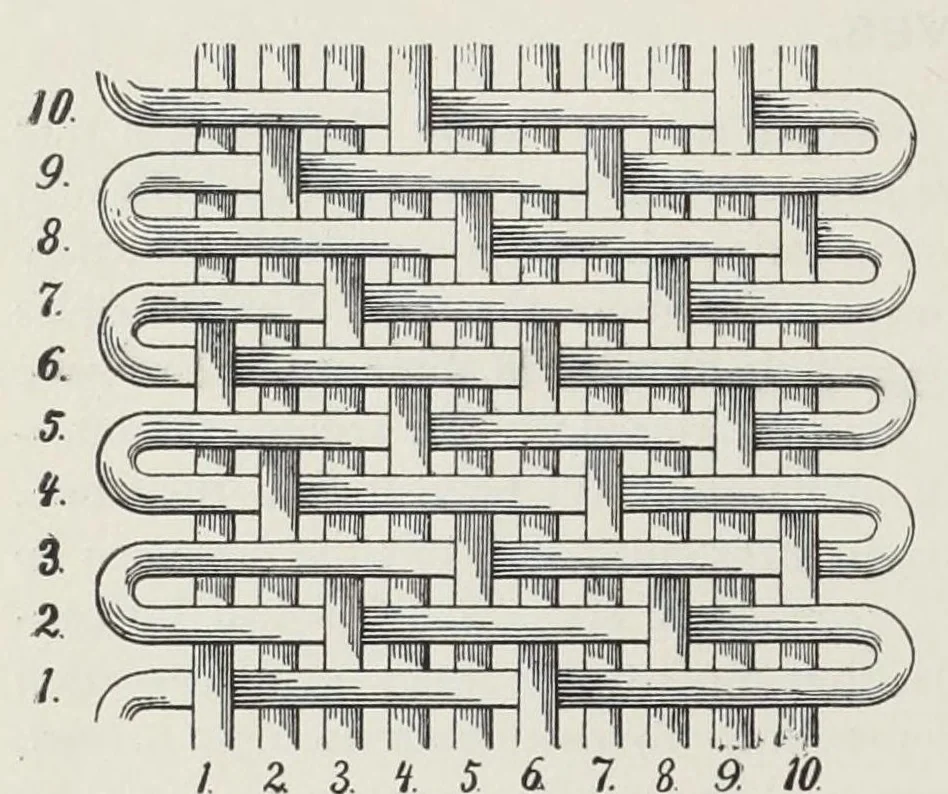

26 Fig. 105 illu.stratcs (enlarged) a fabric interlaced … This construction of the 5-harness satin is illus- Z 3. t . 5 & 7. 8 9: 10 trated by Fig. 105. Fig. 106, in its principle (arrow S indicating the .rotation of warp-threads, arrow O indicating the counting off of warp-threads for each successive pick). Fig. 107, the same, applied to the regular…
Textile design · Textile fabrics · Weaving
