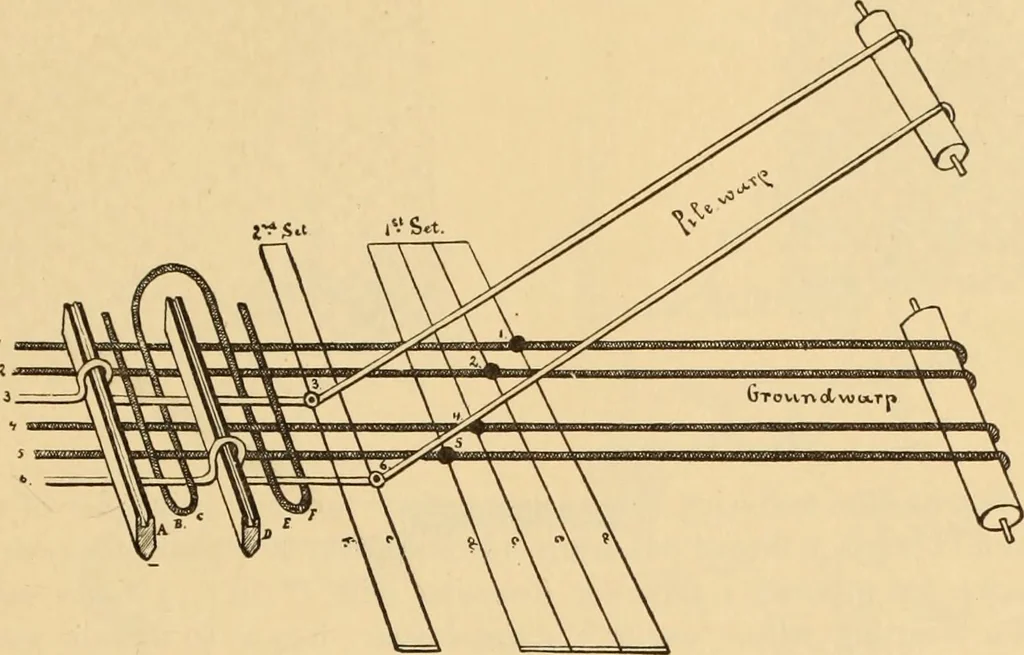

ofharness (indicated at the right-hand side). Diagram Fig. 808 iUustrates the section of a fabric interlaced on weave Fig. 806. Bothground warp-threads, as working at the right and left, are indicated by dotted lines. The pile-warp indicated in full black is shown in the terry and velvet effect… … Fig. 811. Each pile warp-thread is drawn on a separate harness, as shown in Fig. 810. Diagram Fig. 811illustrates the method of operation in weaving a fabric with the weave just given. 2 picksground B, C, E, F; i pick for inserting wire A, D. In pick A the harness f raises warp-thread3 ; in pick D…
