Technology of textile design. A practical treatise on the construction and application of weaves for all textile fabrics... Containing also an appendix describing all the latest methods and improvements in designing and manufacturing (1890)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, E.A. Posselt; London, S. Low, Marston · leaf 175

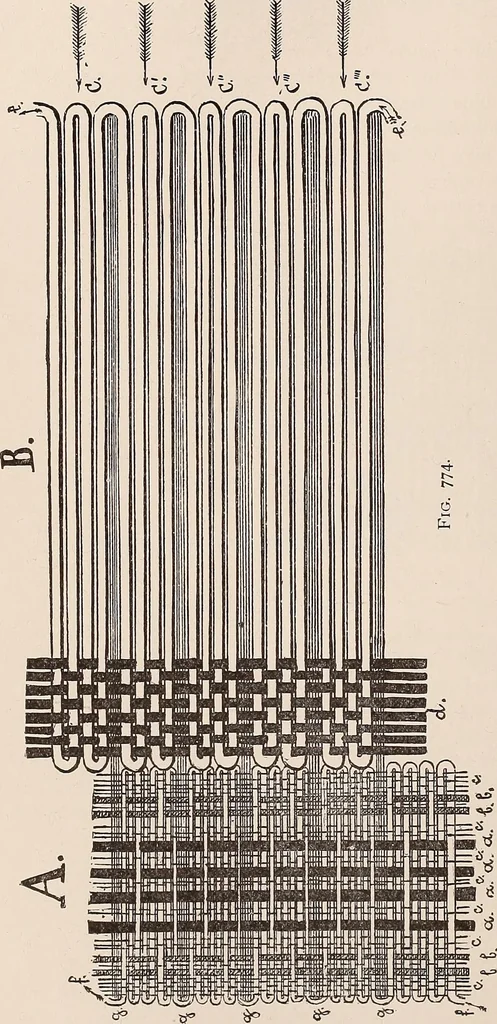

chenille-fringe fabrics.Two shuttles are employed for the headsa a, one for each head. The threads efrom the two shuttles for the heads areseparately woven with the warps a a, employed for these heads, thus producing two heads,and threads e are alternately and at intervals shot past the heads into… … 163 woven heads are alternately connected with the body by such thread;; e as are shot into the bodyat intervals. The cord d is woven only with the warps d of the body, and is introduced thereinalternately with the filling e, as shown. When the fabric is finished, the body is cut throughbetween the…
Textile fabrics
Internet Archive · Clark Art Institute Library · Public Domain Mark 1.0. Free to use for anything.
