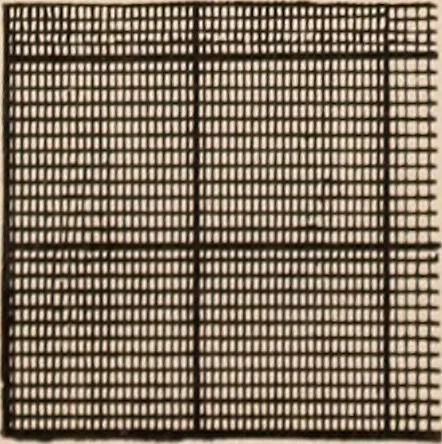

The heavy square serves as a unit of measurement, as well as a means of calculation, andshows readily and exactly the size of the weave or design. The eye becomes accustomed tograsping the meaning of this large square, and comprehends at a glance the situation. Forinstance: 11 6x6 8x7 8x8 8x9 dx/O… … 24xJ2 — -j .... .L.--______ --- llllllllllfi JOxl4 6x15 _I — — — dx/6 5x16 Fig. 6. 12 On 8 x8 paper 3 squares mean 3x8, or 24 rectangles each way; on 10 x 10 paper 3squares mean 3 x 10, or 30 rectangles each way, etc. In designing for regular harness work we generally use □ designing paper…
