Technology of textile design. A practical treatise on the construction and application of weaves for all textile fabrics... Containing also an appendix describing all the latest methods and improvements in designing and manufacturing (1890)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, E.A. Posselt; London, S. Low, Marston · leaf 246

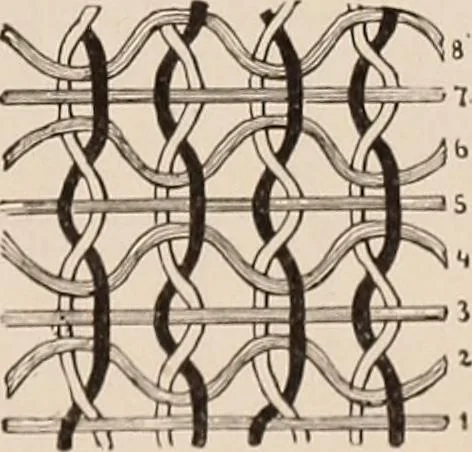

Fig.956. H Fig. 955- In diagram Fig. 953 the plan of another fancy gauze fabric, produced with two doups, isshown. Fig. 954 illustrates the method of drawing in the ground-harness and the threading ofthe doups, which in the present example is a right-handed and a left-handed doup for each set. 0r-… … FiG. 957. Fig. 958. Four ground-harness are used in connection with the two doups. Ground-harness 1 and 2 (A)and doup 1 (/?) equal 1st set; ground-harness 3 and 4 (A) and doup 2 (/>) equal 2d set. Fig. 955 illustrates another fancy gauze fabric, produced with two sets of doups and upon ageneral…
Textile fabrics
