Technology of textile design. A practical treatise on the construction and application of weaves for all textile fabrics... Containing also an appendix describing all the latest methods and improvements in designing and manufacturing (1890)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, E.A. Posselt; London, S. Low, Marston · leaf 265

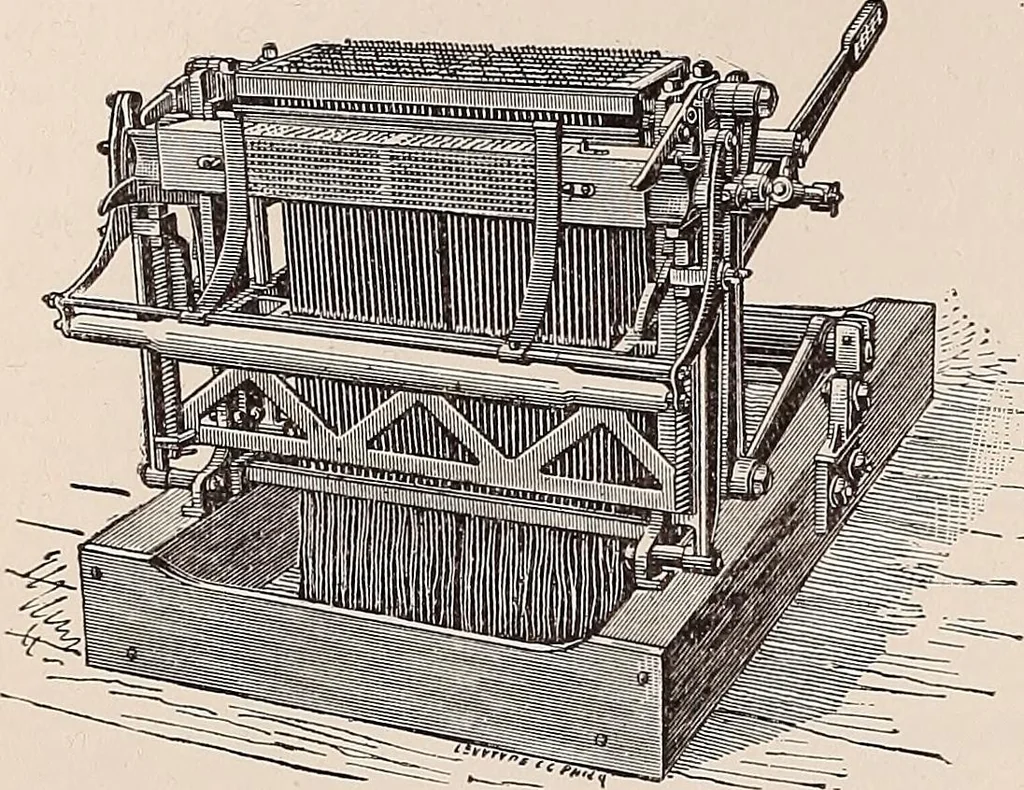

, also, acting asa counterbalance for those controlled by the griffe,make an easy, smooth-working machine. The special feature is the manner in whichthe griffe and bottom plate are operated, for rise and drop shed Jacquard machines havebeen built before this, but have been so constructedthat the… … Fig. 1003. In this newer form of machine a cam is employed which gives a dwell to the bottom platewhile the griffe is continued in action, so that the griffe starts on the upward movement be-fore the bottom plate be-gins to descend, and onthe return motion the bot-tom plate comes to restbefore the…
Textile fabrics
