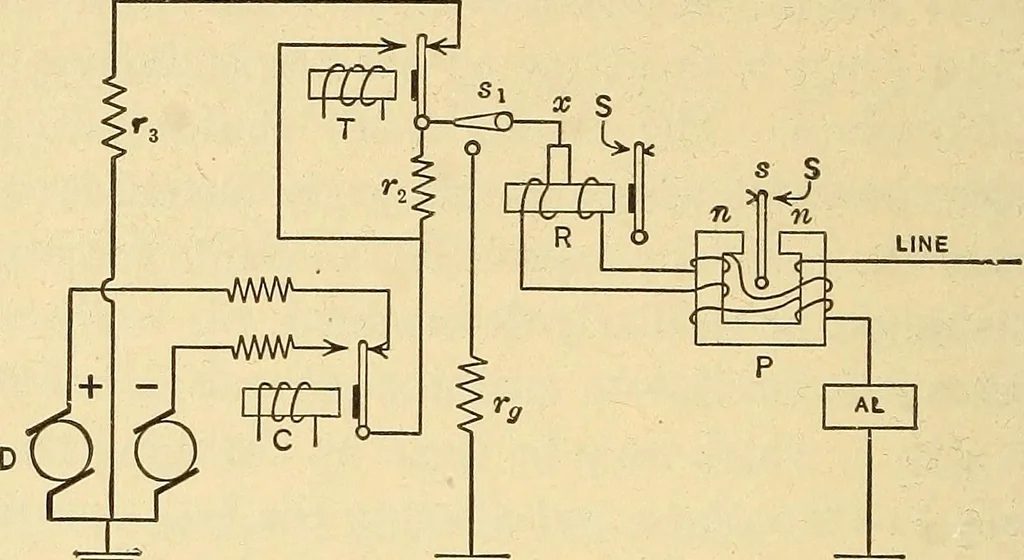

is ar-rangement also. The relay contacts marked 5 are thoseagainst which the armatures must rest in order to operatethe sounders. To balance a quadruplex circuit the distant generatorsmay be disconnected from the circuit while the resistanceof the home artificial line is adjusted to equal the… … Fig. 4. ranged to introduce a resistance Vg from the junction x toground which equals the resistance connected in serieswith the generators. 3. Avoidance of Sounder-armature Release DuringCurrent Reversals in Neutral Relay. — When a neutral re-la;y of a quadruplex circuit is actuated, and the…
