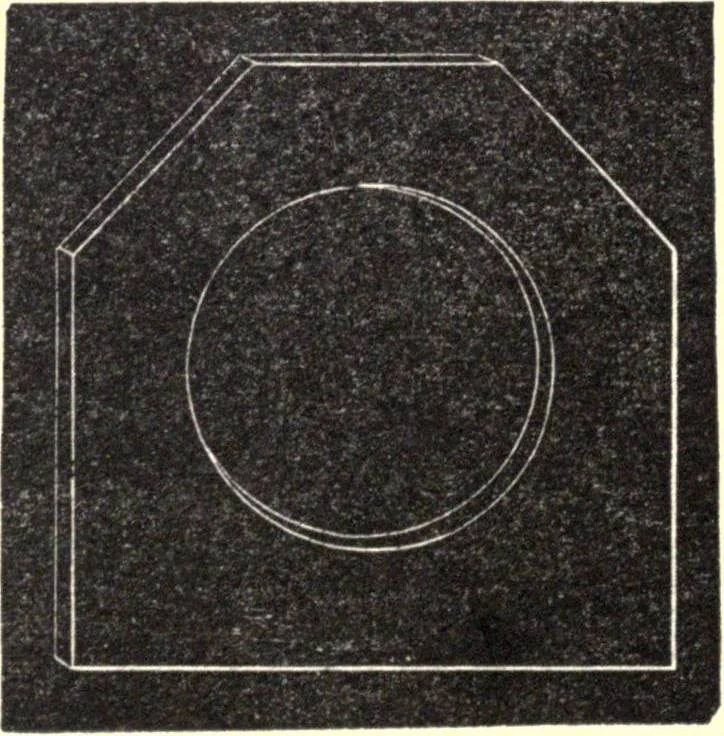

FIG. 14. — MY FIRST SPEAKING TELEPHONE. wound with cotton-covered copper wire, No. 23, each bobbin contain-ing about 150 feet.This magnet, with thebobbins slipped uponits poles, was made fastto a post two or threeinches high. The steelwas made as stronglyFIG. 14.—END VIEW. magnetic as was possi-… … HOW TO MAKE A TELEPHONE. 119 weight. In front of the poles, a sheet of thinsteel, one-fiftieth of an inch thick, was made fastto an upright board having a hole cut through itthree and a half inches in diameter (Fig. 14, endview) ; the plate was screwed tightly to this board,so as to cover the hole…
