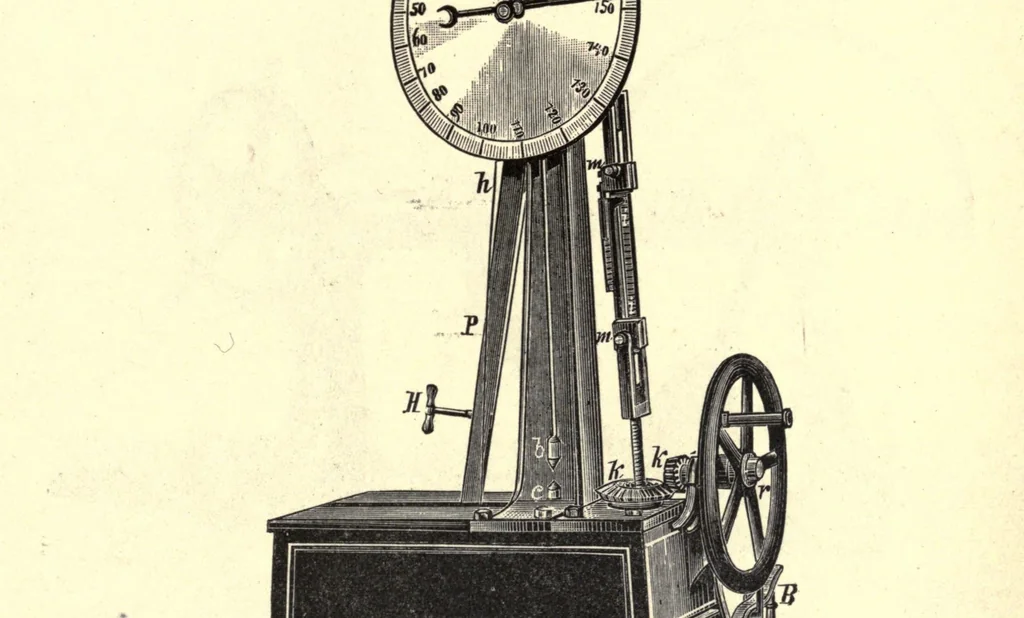

TEXTILE FABKICS. illustration. The tension, produced by turning the hand wheel r, is transmitted by the gearing k to the vertical spindle, and thence to the test strip, which latter may in this machine be reduced to 18 cm. (7| in.) in length by 2'5 cm. (1 in.) in width. In an older model the test… … FIG. 67. Horizontal cloth tester. on the scale. Directly the cloth breaks, the counterpoise is restrained so that the breaking strain can be read off on the scale. The counterpoise can then be lowered by releasing the detents by a pull on the cord /, and by the winding arrangement e. The foregoing…
