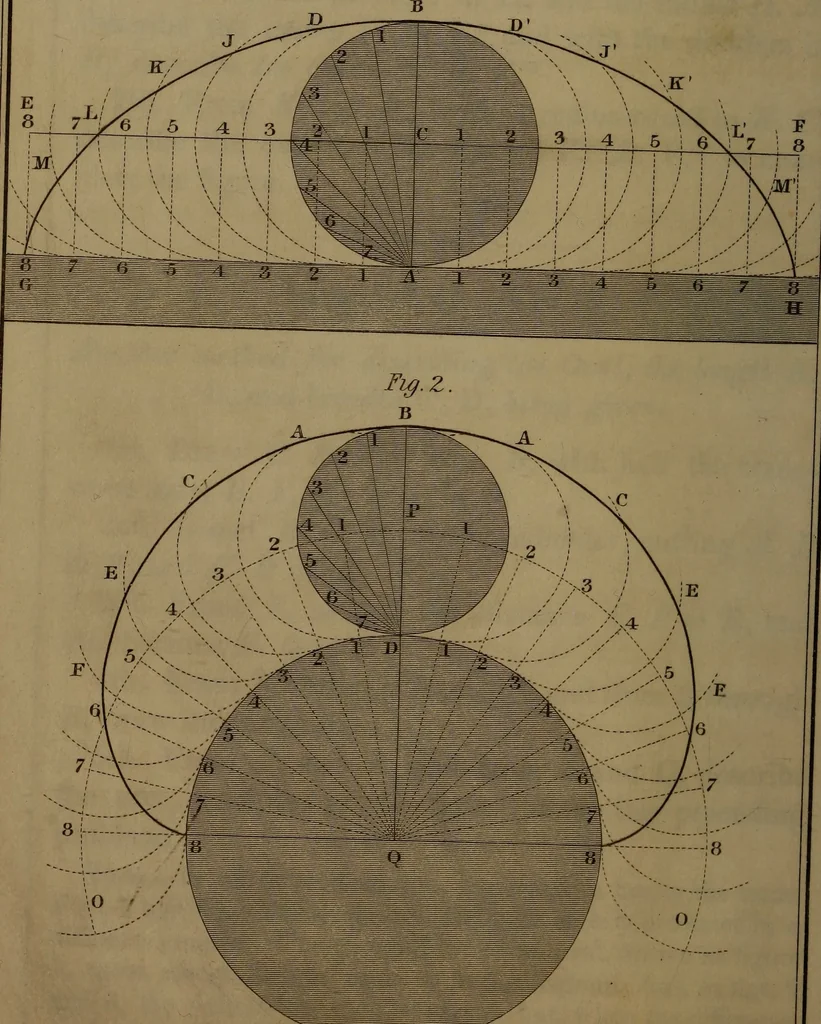

preceding problem. Note.—In all these diagrams, the result is nearly the same.Figs. 1 and 2 are similar figures, although each is produced by adifferent process. The proportions of an oval, drawn as figure1, must always be the same as in the diagram; but, in figs. 2and 3, the proportions may be… … y/^Mimfie. lUjii^cUvkSons. PLATE XIII. 49 vature is too abrupt. These figures are often improperly calledellipses, and sometimes false ellipses. Ovals are frequently usedfor bridges. When the arch is flat, the curve is described frommore than two centres, but it is never so graceful as the…
