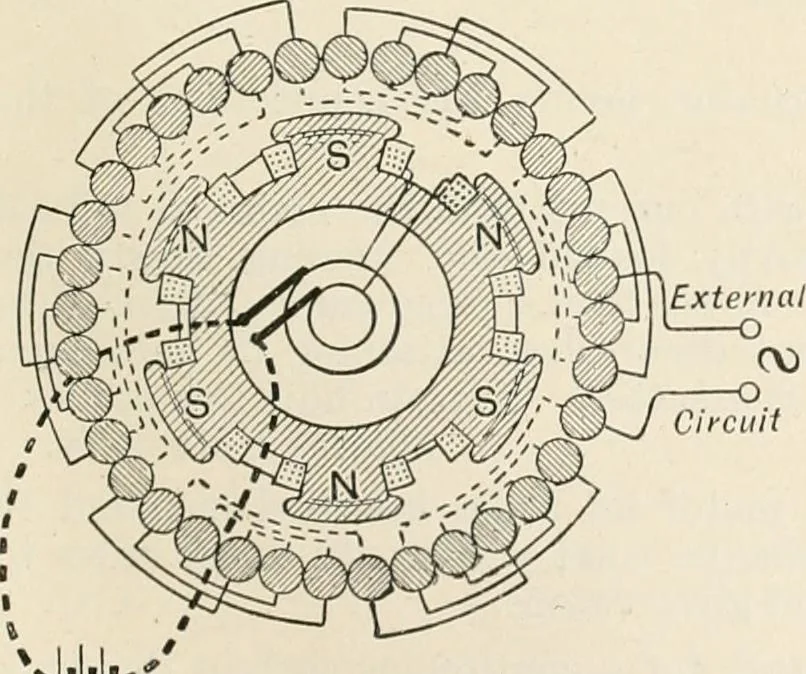

arrange the conductorsupon the outside only ofthe iron core. In Fig. 943an arrangement of thirty-sixconductors round the surfaceof the rotor is shown. Theseare supposed to be connectedat the front as shown bythe thick lines and at theback by the dotted lines.There are three pairs of polesin the… … Hill* Fig, 944.—Stator connections for a six-polealternator. 1002 MAGNETISM AND ELECTRICITY chap. pole to the next of the same kind a complete alternation in e.m.f.is made. In Fig. 944 is shown a similar arrangement, but with the fieldmagnets as rotor, and the conductors, in which the alternating…
