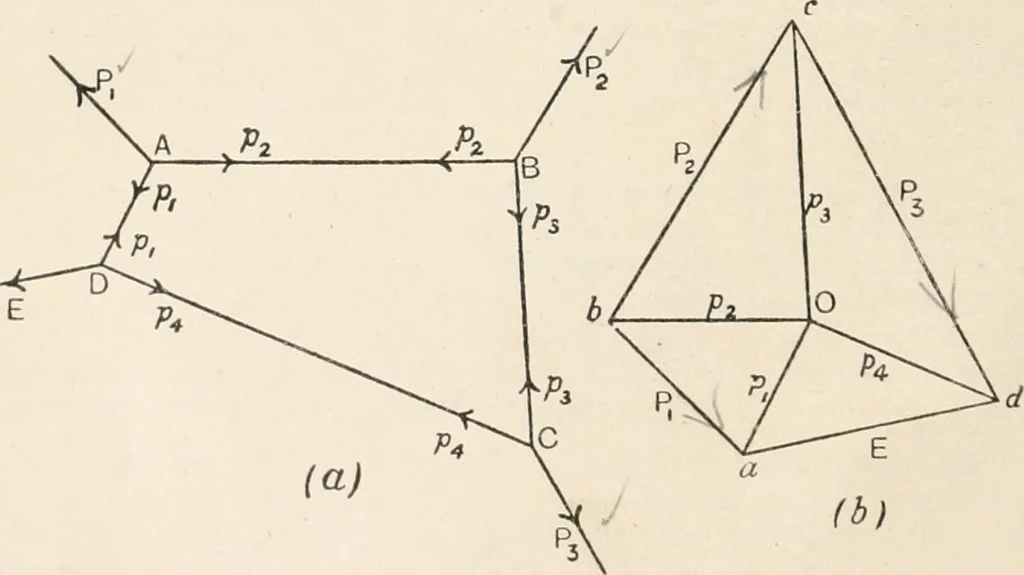

sideilong which it acts, they are equivalent to a torque {i.e. turning moment)•epresented by twice the area of the polygon. Madras Univ. CHAPTER XI GRAPHICAL METHODS OF SOLUTION OF PROBLEMSIN QNIPLANAR FORCES Link polygon.—The following graphical method of determining theequilibrant of a system of… … Fig. 102.—Graphical solution by the link polygon. P, may be balanced by application, at any point A on its line ofaction, of two forces px and p2 in the plane of the paper and notin the same Btraigb.1 line. P,, 7^ and p2must comply with the usualconditions of the triangle of forces; thus in Fig.…
