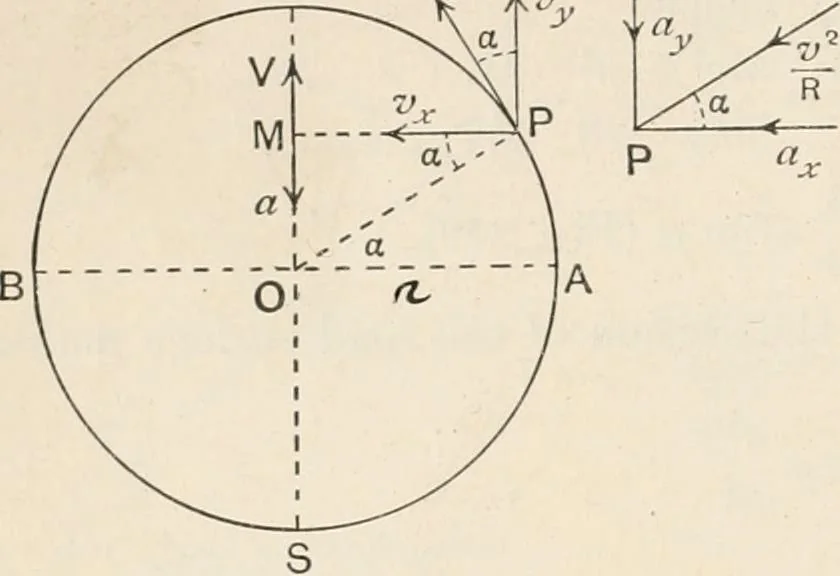

wheels by the ground. Ifall goes well, the clockwise couple formed by Mg and Q, is balancedby the anticlockwise couple formed by F and M?>2/R. It is evidentthat the higher the speed and the smaller the radius of the curve,the greater will be the centrifugal force, and the rider will have tolean… … Fig. 251.—Simple harmonic motion. Simple harmonic motion.—In Fig. 2,51, AB is any diameter of thecircle and NS is another diameter at right angles to AB. Let a point P travel in the circumference\v -, of the circle with uniform velocity v; draw PM per-pendicular to NS. It willbe seen that M, the…
