A text book of physics, for the use of students of science and engineering (1918)
Duncan, John, d. 1941, Starling, Sydney George, 1873- · London Macmillan · leaf 972

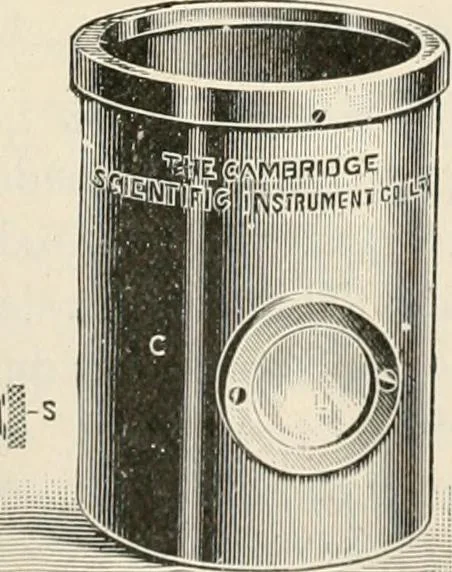

drants are drawn back sothat the paddle inside them can be seen.F is the quartz fibre and M the mirror. Kis a conductor through which the paddlecan be charged before any measurementsare made. When in use the paddle hangs symmetri-cally between the quadrants when A, B andC are all at zero potential… … Fig. 884.—The quadrant electrometer. 948 MAGNETISM AND ELECTRICITY CHAP. VB. It can then be shown that with these potentials the needle willbe deflected from its zero position by an amount 6, where 0«(v, 2 Vc being the potential of the paddle. In practice Vc is always amuch higher potential than VA…
Physics
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
