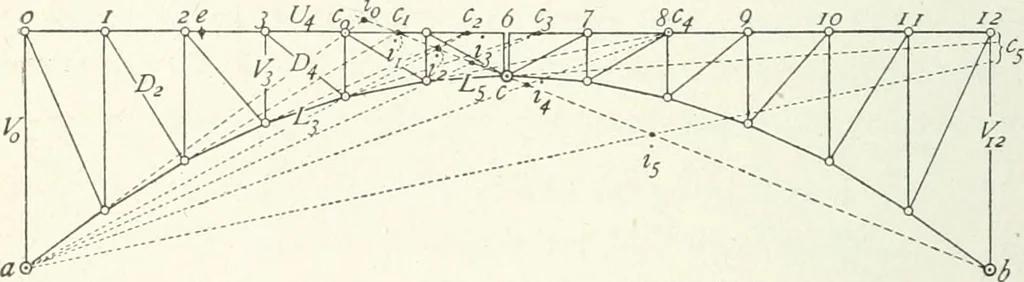

the hinge•a, and the points where the connecting lines intersect the reac-tion locus are marked i^, /^ z^, etc. The subscripts correspondto those of the lower chord members which are produced andhence also equal those of the verticals to which they apply, whilethey are one less than those of the… … Fig. 90. character in V^. When, however, the point / falls below or onthe right of the center hinge it ceases to have this significancebecause the load is now on the right half of the arch and thereaction of the right support no longer coincides with be. If aload could be placed at i^ and supported…
