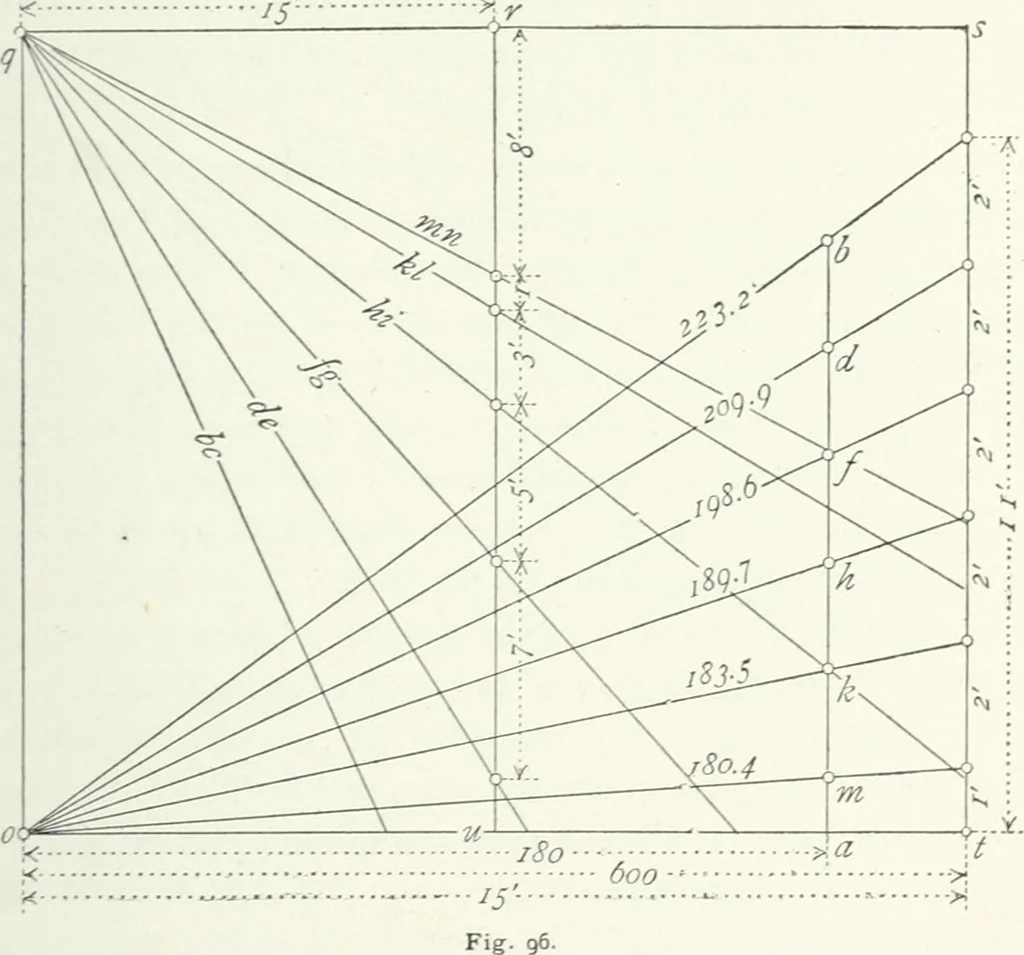

SIS OF STRESSES. 179 Member. Loads. A[ 6-11 GH 3-5 HI 4-5 4248 6045 — 5.00 - 1.89 + 3-02 5,,+ 2.667+ 0.865-1.38 5.+ 70.0-38.8+ 28.5 Since the values of S, and 5/, are to be multiplied by largequantities it is important that they be determined with care.In order to promote accuracy in the… … vertical components of the lengths of the members as shown,the scale for the chords being larger than that for the diago-nals. Let the .student compare the measurements on Fig. 96with those of the truss given on Fig. 91. It is desirable that l80 THREE-HINGED ARCHES. ChAP. V. none of the lines in…
