Textile design and colour; elementary weaves and figured fabrics (1921)
Watson, William, F.T.I · London, New York [etc.] Longmans, Green and co. · leaf 231

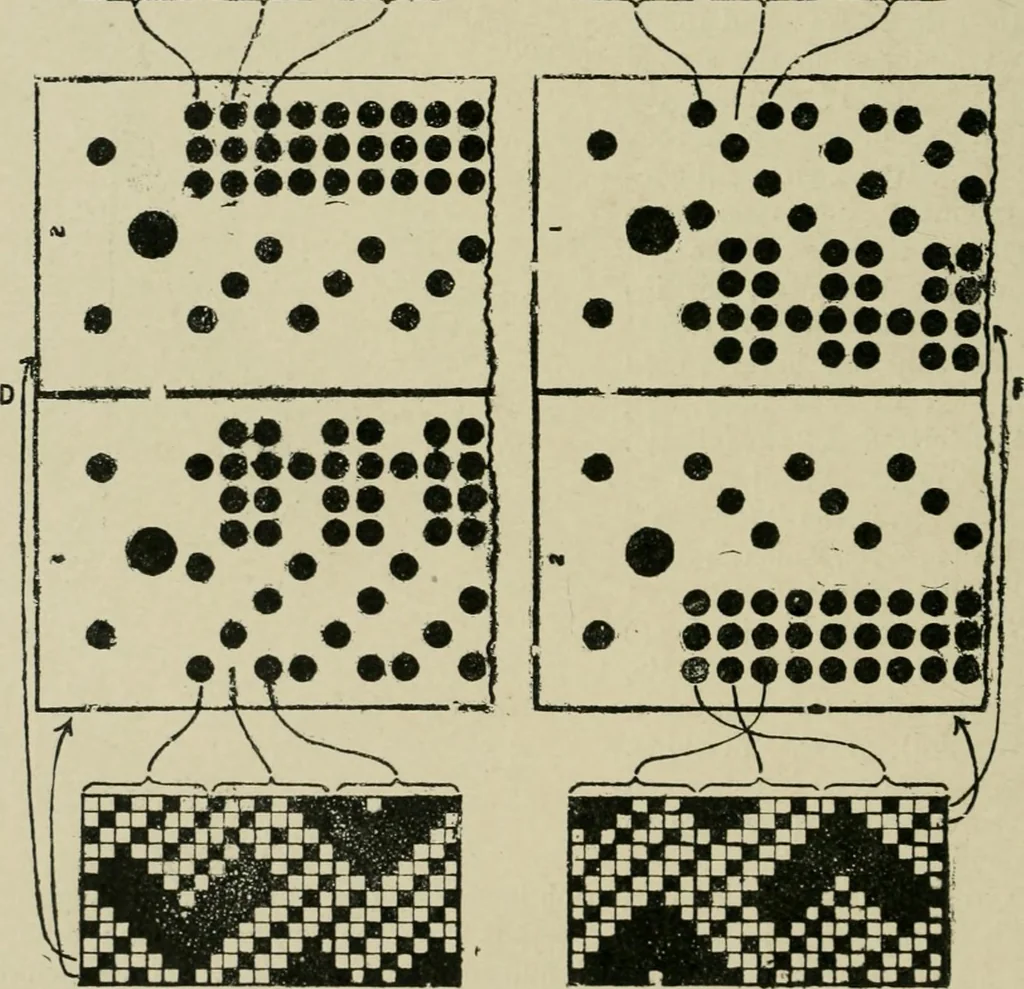

d division. That is, the design will be repeated across the width ofthe cloth by the repetition of the tie, in the manner illustrated by the sectionaldesigns below the comber-boards in Figs. 248 and 249. In the lay-over tie the numberof hooks tied up gives the maximum number of threads in the… … C E Fig. 250. Harness Drawing in, Card Cutting, and Card Lacing.—The warp threads maybe drawn through the harness mails in the order shown at A in Fig. 250, or as indi-cated at B. In the former method the first thread in a design (at the left as viewedfrom the front of the loom) is drawn upon a…
