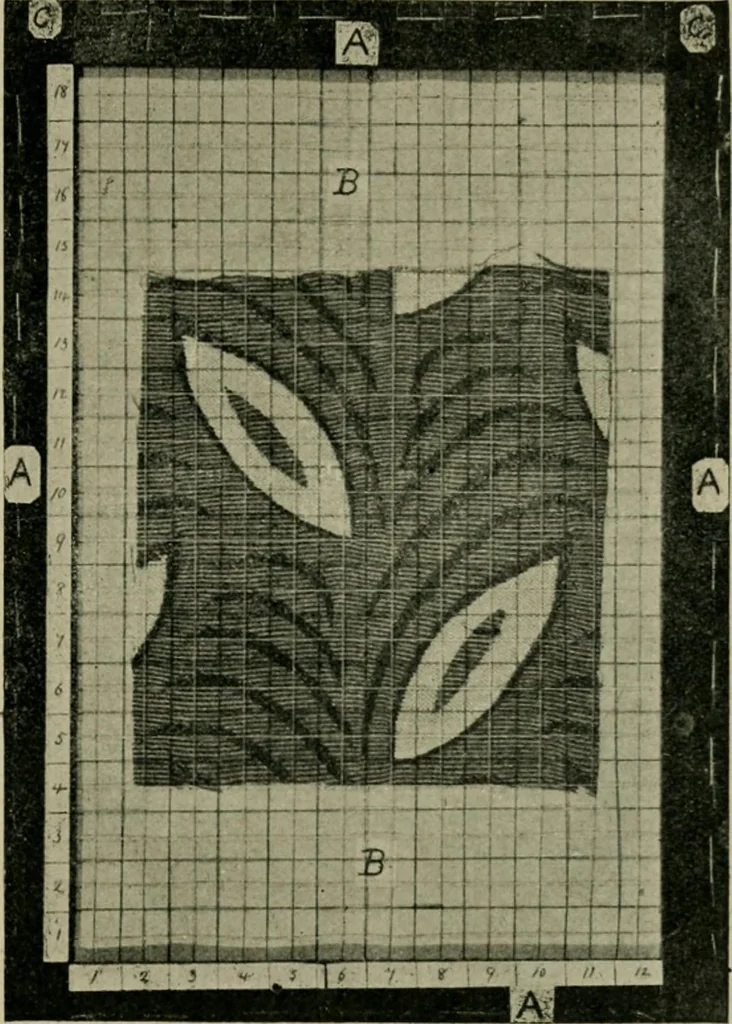

igns which are entirelygeometrical in form, such as thatshown in Fig. 268, can be re-produced from woven patternsdirectly on to the point-paperwith the aid of compasses andruler. The positions of the baselines and centres can be obtainedby calculation after the numberof threads in the repeat… … fig. 271. being worked out. Fig. 269 illustrates, in a very reduced form, the method ofdrawing the base lines directly upon design paper from the pattern representedin Fig. 268. After these have been indicated it is only necessary to clothe thelines with the calculated size of float. In drafting…
