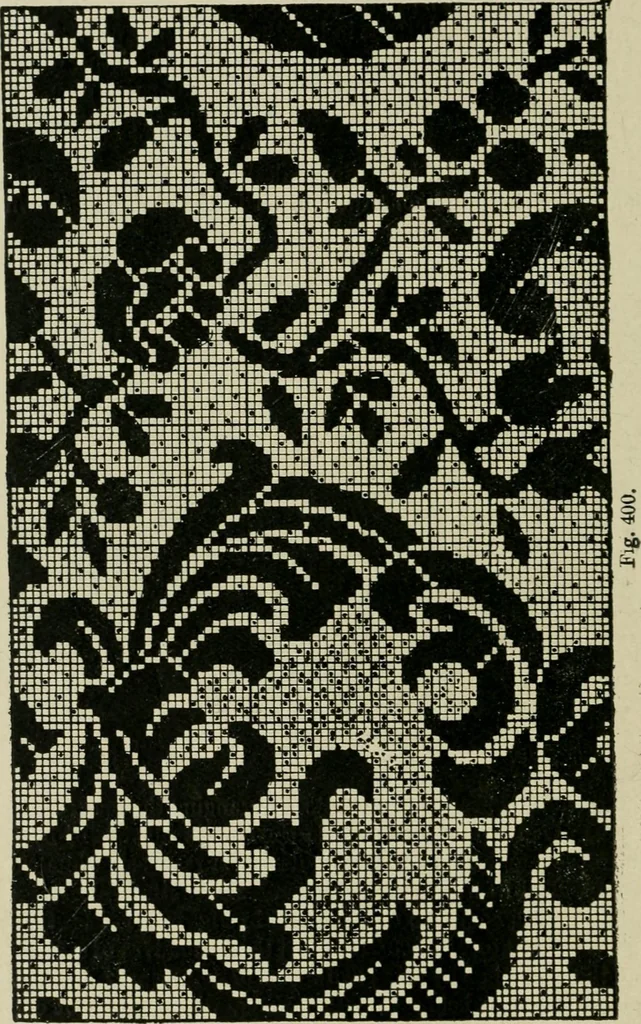

r. Thus, in Fig. 397, the solid marks in both halves 340 TEXTILE DESIGN AND COLOUR show the portion of figure obtained from the pattern in Fig 398 at the first diawing,and the shaded marks the portion added, while in order to make the design fitcorrectly eight threads require to be transferred from… … the given figure is evenly balanced. The point-paper draft, shown in Fig. 400, ismade upon a comparatively small number of threads, and is therefore different inseveral respects from the figure represented in Fig. 399. Only one half of thecomplete design is given in Fig. 400, but the main feature…
