The textile industries : a practical guide to fibres, yarns & fabrics in every branch of textile manufacture, including preparation of fibres, spinning, doubling, designing, weaving, bleaching, printing, dyeing and finishing (1910)
Murphy, William S · London : The Gresham Publishing Company · leaf 169

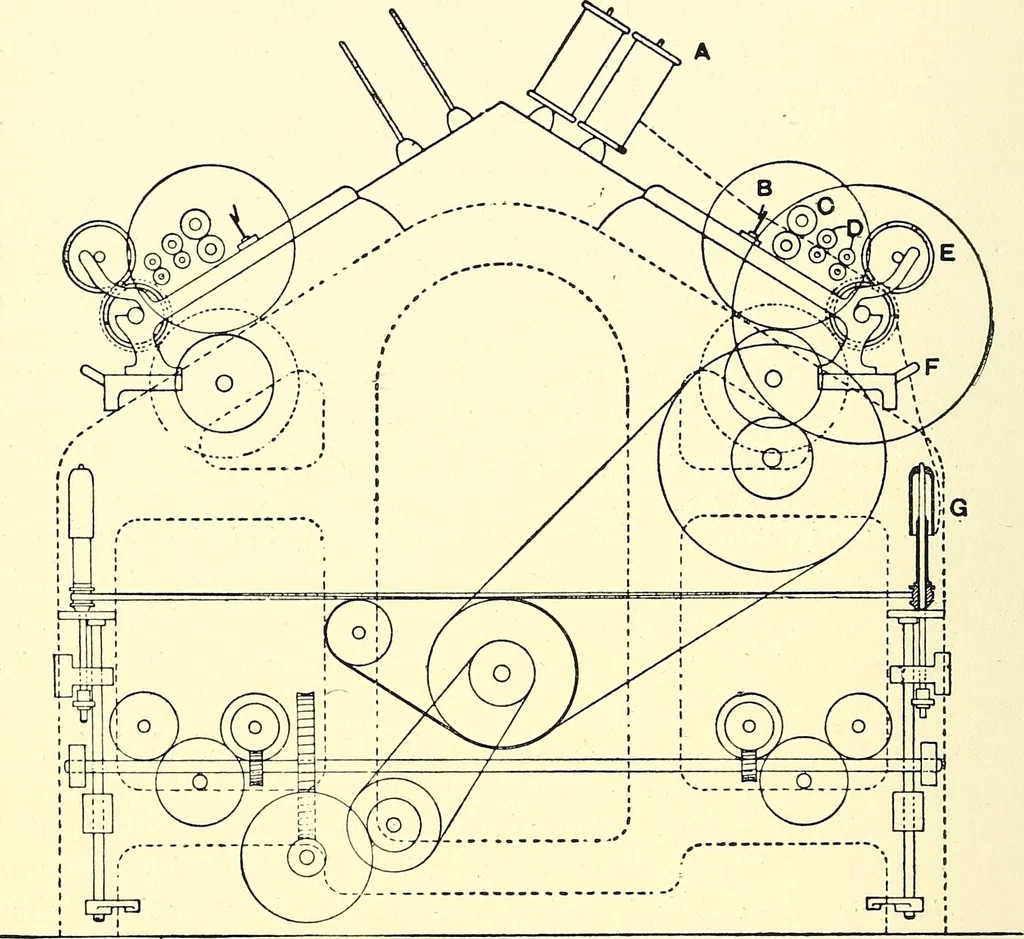

nof the frame or the number of turns which can be put into the inchof yarn. Spinning Worsted on the Cap-and-tube Frame.—It is in the worsted 132 SPINNING factory that the cap-and-tube frame (fig. 167) is to be seen at its best.No better machine for spinning weft yarns has been invented. Thetwist is… … Fig. 167.—Diagram of Cap Frame A, Roving creel. B, Guide. c, Back rollers. d, Carrier rollers. e, Front rollers. f. Guide. G, Spindle and Cap. of the cap to the diameter of the bobbin, the length and tension of theballooning of the thread between the eye of the thread board and the edgeof the cap,…
