The textile industries : a practical guide to fibres, yarns & fabrics in every branch of textile manufacture, including preparation of fibres, spinning, doubling, designing, weaving, bleaching, printing, dyeing and finishing (1910)
Murphy, William S · London : The Gresham Publishing Company · leaf 186

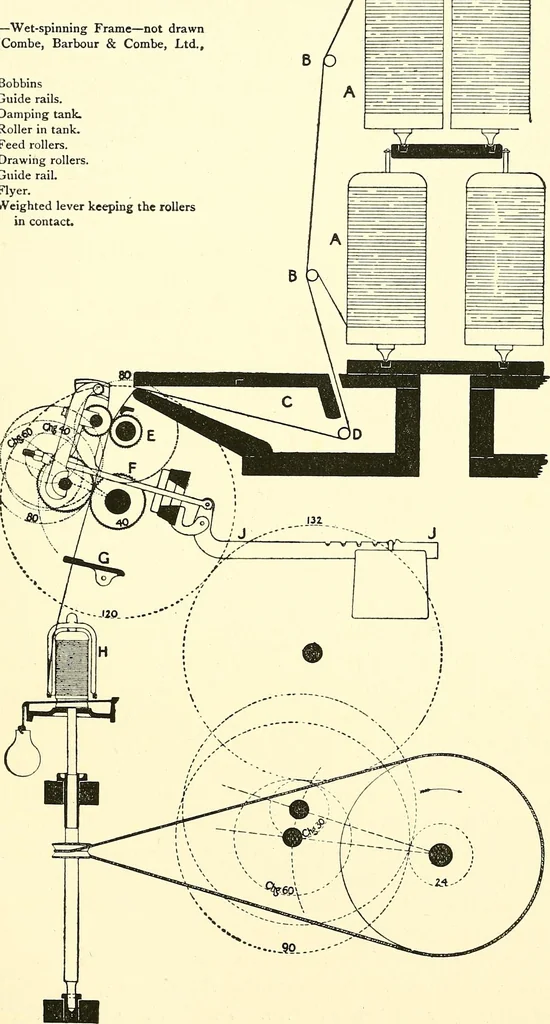

PRACTICAL SPINNING 145 Fig. 176.—Wet-spinning Frame—not drawnto scale. (Combe, Barbour & Combe, Ltd.,Belfast.) A A, BobbinsB B, Guide rails.c, Damping tank. D, Roller in tank. E, Feed rollers. F, Drawing rollers. G, Guide rail.H, Flyer.J, Weighted lever keeping the rollers in contact. /^ ^ r ^… … TOL. III. 64 146 SPINNING The bands are drawn farther and farther out with every traverseof the lifter, thus adding to the leverage of the weights. Anotherinvention is the *spring, self-acting drag motion. This is a longrod attached to the front of the traverse rail, or lifter. From therod spring…
